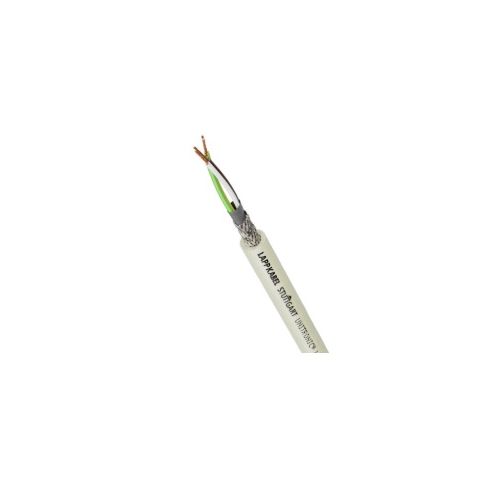

0031373 | UNITRONIC Li2YCY (TP) 5X2X0,25 | Low Capacitance Cable
UNITRONIC Li2YCY (TP) 5X2X0,25, Low-capacitance screened PVC data cable (Fine Wire), Number of conductors: 5 x 2, Conductor cross section: 0.25mm²
| Complete Electronics Part No. | 0031373 |
|---|---|
| Manufacturers Part No. | 0031373 |
| Series: | UNITRONIC Li2YCY (TP) |
| Conductor Cross Section: | 0.25mm² |
| Shielding: | Shielded / Screened |
| Cable Jacket: | PVC |
| Twisted Pair: | X 5 |
Description
0031373 UNITRONIC® Li2YCY (TP) 5x2x0,25
Low-frequency data cable, Screened, Flexible
Product Design
Design based on standard VDE 0812 and EN 50288-7
Classification of fire behaviour: EN 13501-6 and EN 50575
Cores twisted to pairs,
Number of conductors: 10
Without armouring
Shielded
Qualified for the serial interfaces RS422 und RS485
Max. conductor temperature, fixed installation: -40°C to 80°C
Max. conductor temperature occasionally moved:-5°C to 70°C
Low-capacitance core insulation for long transmission paths
Electrical / Insulation Parameters
Number of condutors:10
Number of Pairs:5
Nominal core cross section 0.25 mm²
Nominal outer diameter: 8.3 mm
Conductor material: Bare copper - fine-wire
Type of overall screeen: Tin plated Copper Braiding, nominal coverage 85 %
Core insulation basic material: Polyethylene (PE)
Basic material of outer sheath: Polyvinylchloride (special PVC-based compound)
Outer Sheath colour: Grey, (similar RAL 7032)
Core identification:acc. to DIN47100
Armouring type: None
Weight: 93 kg/km
Product Features
Application area: Flexible, Fixed Installation
Flame retardant - Yes acc to IEC 60332-1-2
For continuous flexing:- No (occasional)
For torsional load: No
For torsional load: No
Windable - No
Halogen Free - No
Suitable for EX-applications - No
Oil Resistant - No
UV Resistant - No
PWIS-free - Yes acc. to VDMA 24364-B2-L
Low capacitance - Yes
General Information
Low-capacitance core insulation for long transmission paths
With robust, flexible and resistant PVC outer sheath
For use in control, regulation and measurement circuits
Especially for environments where electromagnetic compatibility (EMC) is required.
For fixed installation and occasional movement
Suitable for use in AC and DC charging infrastructures
Can be used in dry and damp environments.
EAC-certified, CE marked
Lapp part number: 0031373
Length: 100M
