0032803 | UNITRONIC PUR CP 5X0,25 | DIN Colour Coded Cables
Screened cable with PUR outer sheath, Flame retardant to IEC 60332-1-2, DIN 47100 colour coding, Number of cores: 5 , Conductor Cross section: 0.25mm²
| Complete Electronics Part No. | 0032803 |
|---|---|
| Manufacturers Part No. | 0032803 |
| Series: | UNITRONIC PUR CP |
| Number of Conductors: | 5 |
| Conductor Cross Section: | 0.25mm² |
| Shielding: | Shielded / Screened |
| Cable Jacket: | PUR |
Description

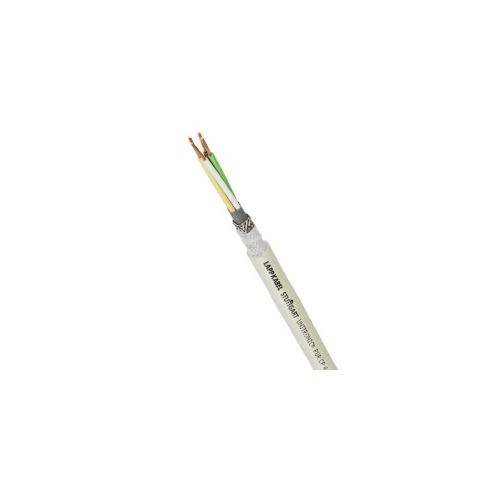

0032803 UNITRONIC® PUR CP 5X0.25
Low-frequency data cable, Shielded; Flexible
Product Design
Design based on standard VDE 0812
Flame retardant acc. to IEC 60332-1-2 resp. EN 60332-1-2
Number of conductors: 5
Fine wire strands of bare copper acc. to IEC 60228 resp. EN IEC 60228, class 5
Core ID, acc. to DIN 47100
Shielded, Tin-plated copper braiding, coverage 85 % (nominal value)
Max. conductor temperature, fixed installation: -40°C to 80°C
Max. conductor temperature occasionally moved:-5°C to 70°C
Electrical / Insulation Parameters
Number of condutors:5
Nominal core cross section 0.25mm²
Nominal outer diameter: 5.6 mm
Maximum operating voltage: 500 V (not intended to be used in conjunction with low impedance sources, such as power grids)
Conductor material: Bare copper fine wire strands
Type of overall screen: Braiding with tinned copper wires, coverage 85% (nominal value)
Core insulation basic material: Polyvinylchloride (PVC)
Basic material of outer sheath: Polyurethane (PUR)
Outer Sheath colour: Pebble Grey (similar RAL 7032)
Armouring type: None
Weight: 29 kg/km
Product Features
Flame retardant - Yes acc. to IEC 60332-1-2 resp. EN 60332-1-2
For continuous flexing:- No (occasional)
For torsional load: No
For torsional load: No
Windable - No
Halogen Free - No
Suitable for EX-applications - No
Oil Resistant - Yes
Chemical Resistant - Yes
UV Resistant - Yes acc. to EN ISO 4892-2, method A (colour change permitted)
PWIS-free - Yes acc. to VDMA 24364-B2-L
General Information
With robust, flexible and resistant PUR outer sheath
The PUR outer sheath withstands high mechanical loads
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals.
For data and signal transmission in the low-frequency range.
Especially for environments where electromagnetic compatibility (EMC) is required.
Can be used universally at machine interfaces for many applications
Can be used in dry, damp and wet environments.
Suitable for outdoor use
EAC-certified, CE marked
Lapp part number: 0032803
Length: 100M
Length: 100M
