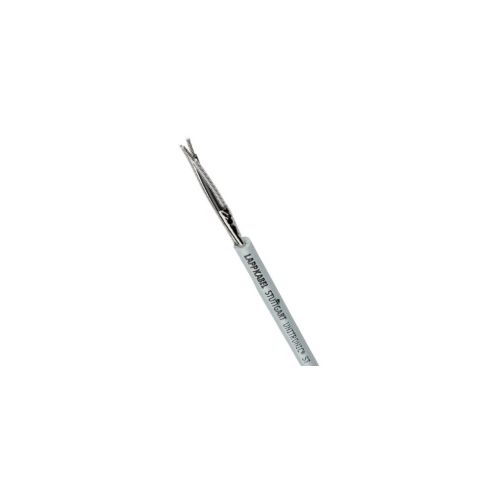

0033000 UNITRONIC ST 2X20/7AWG | Low capacitance Cables
Static screened cable, Core ID: Black - Transparent, Flame retardant to IEC 60332-1-2 Number of cores: 2, Conductor Diameter: AWG 20/7
| Complete Electronics Part No. | 0033000 |
|---|---|
| Manufacturers Part No. | 0033000 |
| Series: | UNITRONIC ST |
| Number of Conductors: | 2 |
| Conductor Cross Section: | AWG 20 / 7 |
| Shielding: | Shielded / Screened |
| Cable Jacket: | PVC |
Description
0033000 UNITRONIC® ST 2X20/7 AWG
Low-Capacitance data cable, Shielded; Flexible
Product Design
Design similar to AWM Style 2092 respectivly 2093
Flame retardant acc. to IEC 60332-1-2
Number of conductors: 2
7-wire strands of tinned copper wires
Core ID, 3 cores: black,clear
Shielded, Aluminium-laminated plastic foil
Max. conductor temperature, fixed installation: -40°C to 80°C
Max. conductor temperature occasionally moved:-5°C to 70°C
Electrical / Insulation Parameters
Number of condutors:2
Nominal core cross section 20/7 AWG
Nominal outer diameter: 5.3 mm
Conductor material: Tin-plated copper
Tinned copper wire strands
Type of overall screen: Aluminium-laminated plastic foil
Core insulation basic material: Polyethylene (PE)
Basic material of outer sheath: Polyvinylchloride (PVC)
Outer Sheath colour: Pebble Grey (similar RAL 7032)
Armouring type: None
Weight: 35 kg/km
Product Features
Flame retardant - Yes acc. to IEC 60332-1-2
For continuous flexing:- No (occasional)
For torsional load: No
For torsional load: No
Windable - No
Halogen Free - No
Weather resistant - No
Ozone resistance - Yes
Oil Resistant - No
Chemical Resistant -
UV Resistant - No
PWIS-free - Yes acc. to VDMA 24364-B2-L
General Information
Can be used universally at machine interfaces for many applications
For use in control, regulation and measurement circuits
For data and signal transmission in the low-frequency range.
Especially for environments where electromagnetic compatibility (EMC) is required.
Can be used in dry, damp and wet environments.
EAC-certified, CE marked
Lapp part number: 0033000
Length: 100M
Length: 100M
