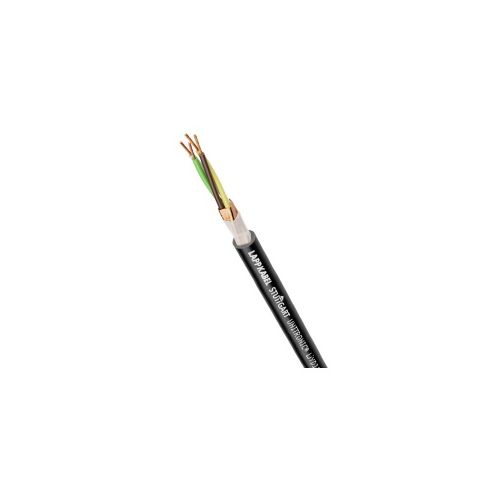

0033302 | UNITRONIC LIYD11Y 2X0,25 | DIN Colour Coded Cables
Screened cable with PUR outer sheath, Flame retardant to IEC 60332-2-2, Suitable for outdoor useNumber of cores: 2 , Conductor Cross section: 0.25mm²
| Complete Electronics Part No. | 0033302 |
|---|---|
| Manufacturers Part No. | 0033302 |
| Series: | Unitronic LiYD11Y |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 0.25mm² |
| Shielding: | Shielded / Screened |
| Cable Jacket: | PUR |
Description
0033302 UNITRONIC® LIYD11Y 2X0.25
Low-frequency data cable; Shielded; Flexible
Product Design
Design based on standard VDE 0812
Flame retardant acc. to IEC 60332-2-2
Number of conductors: 2
Core Identification: Colours (DIN 47100)
Shieldedwith Spinning of bare copper wires, wrapping with fleece
Max. conductor temperature, fixed installation: -40°C to 80°C
Max. conductor temperature occasionally moved:-5°C to 70°C
Electrical / Insulation Parameters
Number of condutors:2
Nominal core cross section 0.25mm²
Nominal outer diameter: 4.7 mm
Maximum operating voltage: 250 V (not for power applications)
Conductor material: extra-fine wire strands of bare copper wires
Core insulation basic material: Polyvinylchloride (PVC
Basic material of outer sheath: Polyurethane (PUR)
Outer Sheath colour: Black (similar RAL 9005)
Armouring type: None
Weight: 25 kg/km
Product Features
Flame retardant - Yes acc to IEC 60332-2-2
For continuous flexing:- No (occasional)
For torsional load: No
For torsional load: No
Halogen Free - No
Suitable for EX-applications - No
Chemical Resistant - Yes
Oil Resistant - Yes
UV Resistant - Yes
PWIS-free - Yes acc. to VDMA 24364-B2-L
General Information
For fixed installation and occasional movement
For data and signal transmission in the low-frequency range.
Especially for environments where electromagnetic compatibility (EMC) is required.
For use in electronic control and regulation devices, office machines etc
The PUR outer sheath withstands high mechanical loads
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals.
Can be used in dry, damp and harsh environments.
Suitable for outdoor use subject to the temperature range
EAC-certified, CE marked
Lapp part number: 0033302
Length: 100M
Length: 100M
