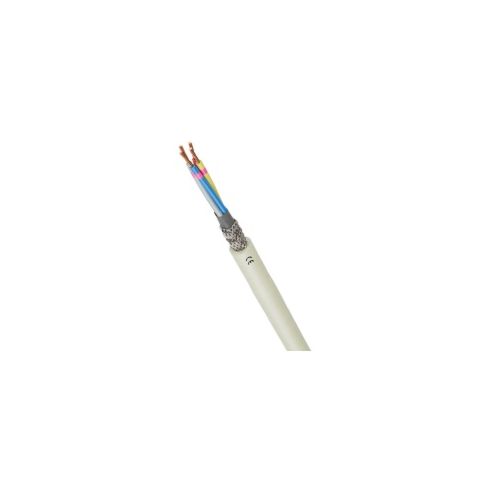

0034203 | JE-LiYCY...BD 16X2X0,5 | Instrumentation Cable
JE-LiYCY...BD 16X2X0,5, Screened data transmission cable, Number of conductors: 16 x 2, Condutor cross section: 0.5mm²
| Complete Electronics Part No. | 0034203 |
|---|---|
| Manufacturers Part No. | 0034203 |
| Series: | JE-LiYCY |
| Conductor Cross Section: | 0.5mm² |
| Shielding: | Shielded / Screened |
| Cable Jacket: | PVC |
| Twisted Pair: | X 16 |
Description
0034203 JE-LiYCY...BD 16X2X0,5
Installation data cable, Shielded; Flexible
Product Design
Design based on standard VDE 0815 Table 5
Classification of fire behaviour: EN 13501-6 and EN 50575
Number of conductors: 32
TP, Twisted Pair with short lay lengths
Without armouring
Shielded
Max. conductor temperature, fixed installation: -30°C to 70°C
Max. conductor temperature occasionally moved:-5°C to 50°C
Electrical / Insulation Parameters
Number of condutors:32
Number of Pairs:16
Nominal core cross section 0.5 mm²
Nominal outer diameter: 14 mm
Conductor material: Bare copper
Type of overall screeen: Tin plated Copper Braiding
Core insulation basic material: Polyvinylchloride (PVC)
Basic material of outer sheath: Polyvinylchloride (PVC
Outer Sheath colour: Pebble Grey (similar RAL 7032)
Core identification:acc. to VDE 0815
Armouring type: None
Weight: 430 kg/km
Product Features
Flame retardant - Yes acc to IEC 60332-1-2
For continuous flexing:- No (occasional)
For torsional load: No
For torsional load: No
Windable - No
Halogen Free - No
Suitable for EX-applications - No
Oil Resistant - No
UV Resistant - No
PWIS-free - Yes acc. to VDMA 24364-B2-L
General Information
With robust, flexible and resistant PVC outer sheath
The PVC outer sheath is somewhat oil-resistant
For use as an installation cable for telecommunications and information processing
Especially for environments where electromagnetic compatibility (EMC) is required.
For fixed installation and occasional movement
For fixed and protected installation in an electrical installation pipe on or under plaster
Can be used in dry and damp environments.
EAC-certified, CE marked
Lapp part number: 0034203
Length: 100M
