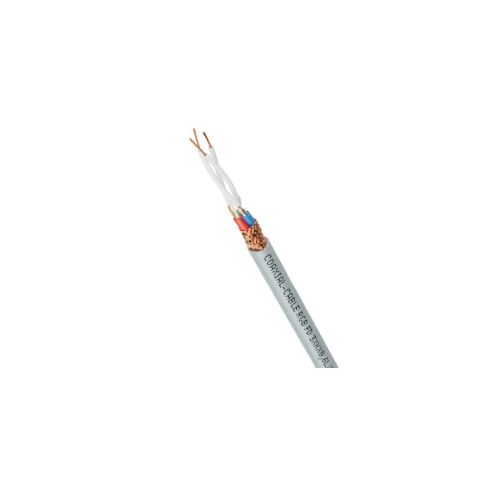

0034247 | COAXIAL-CABLE RGB FD 3XKX0,6L/2,4 | Coaxial Cable
RGB Coaxial cable, Low Attenuation, Highly Flexible, Colour monitor cable for PCs and CAD workstations,Highly flexible
| Complete Electronics Part No. | 0034247 |
|---|---|
| Manufacturers Part No. | 0034247 |
| Cable Type: | Coaxial Cable |
| Cable Jacket: | PUR |
Description
0034247 COAXIAL-CABLE RGB FD 3xKx0,6L/2,4
Colour monitor cable for PCs and CAD workstations
Product Design
The cable contains three coaxial cables for the separate transmission of the red,green and blue colour signals
Low attenuation and allows large transmission lengths
Shielded: Yes
Cable sheath colour: Grey (RAL7001)
Core sheath colours: red, green, blue
Number of Cores: 3
Conductor: Bare copper
Nominal conductor diameter (mm): 0.6 mm
Nominal outer diameter; 10.5mm
Weight: 100 kg/km
Max. conductor temperature, fixed installation: -10˚C up to 70˚C
Max. conductor temperature, flexible installation: -20˚C up to 80˚C
Electrical / Insulation Parameters
Mutual capacitance 60 nF/km
Characteristic impedance 75 Ω
Attenuation max. 1.7 dB/100 m (1 MHz)
max. 5.4 dB/100 m (10 MHz)
max. 11.9 dB/100 m (50 MHz)
max. 17.0 dB/100 m (100 MHz)
max. 25.0 dB/100 m (200 MHz)
Velocity of propagation 81 %
Insulation Dielectric cellular-polyethylene, Ø nom. 2.4 mm
Stranding: 3 coaxial cables twisted together
Outer conductor coaxial cable: bare copper braiding
Outer sheath: PVC, Ø 3.7 mm
Outer sheath: PVC, Ø 3.7 mm
Sheath colours: red, green, blue
Velocity of propagation 81 %
Velocity of propagation 81 %
Product Features
Flame retardant - Yes acc. to IEC 60332-1-2
Hydrolysis resistant -
Chemical resistant -
Chemical resistant -
Halogen Free- No
Oil Resistant - No
UV Resistant - No
Weather Resistant -
PWIS-free - No
For continuous flexing - Yes
For torsional load - No
General Information
Suitable for continual flexing application in power chains
Ideal protection against electromagnetic interference thanks to copper stranded shielding
The product is heat resistant up to 80°C (Fixed Instaliations)
EAC Certified, CE marked
Lapp part number: 0034247
Length: 500M
