0034258 | UNITRONIC CY PIDY (TP) 12X2X0,25 | DIN Colour Coded Cables
Screened cable with copper-wrapped twisted pairs, DIN 47100 colour coding, Number of cores: 12 x 2 (TP), Conductor Cross section: 0.25mm²
| Complete Electronics Part No. | 0034258 |
|---|---|
| Manufacturers Part No. | 0034258 |
| Series: | UNITRONIC CY PIDY (TP) |
| Conductor Cross Section: | 0.25mm² |
| Shielding: | Shielded / Screened |
| Cable Jacket: | PVC |
| Twisted Pair: | X 12 |
Description

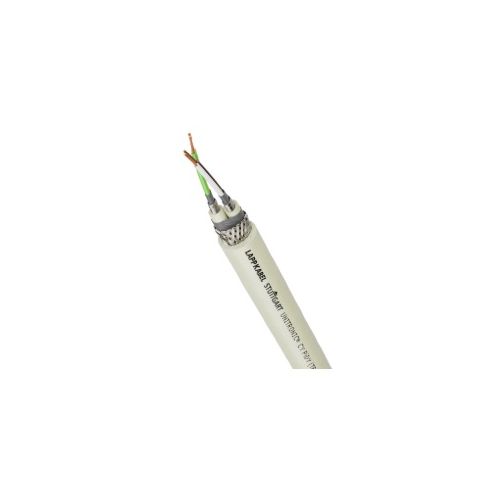

0034258 UNITRONIC® CY PIDY (TP) 12X2X0.25
Low-frequency data cable, Shielded; Flexible
Product Design
Design based on standard VDE 0812
Flame retardant acc. to IEC 60332-1-2 resp. EN 60332-1-2
Number of conductors: 24
Screened and sheathed twisted pairs stranded in layers
Braiding with tinned copper wires, coverage 85 % (nominal value)
Core ID, acc. to DIN 47100
Max. conductor temperature, fixed installation: -40°C to 80°C
Max. conductor temperature occasionally moved:-5°C to 70°C
Electrical / Insulation Parameters
Number of condutors:24
Number of Pairs:12
Nominal core cross section 0.25mm²
Nominal outer diameter: 17.4 mm
Maximum operating voltage: 500 V (not intended to be used in conjunction with low impedance sources, such as power grids)
Conductor material: Bare copper fine wire strands
Type of overall screen: Braiding with tinned copper wires, coverage 85% (nominal value)
Core insulation basic material: Polyvinylchloride (PVC)
Basic material of outer sheath: Polyvinylchloride (PVC)
Outer Sheath colour: Pebble Grey (similar RAL 7032)
Armouring type: None
Weight: 416 kg/km
Product Features
Flame retardant - Yes -IEC 60332-1-2
For continuous flexing:- No (occasional)
For torsional load: No
For torsional load: No
Windable - No
Halogen Free - No
Suitable for EX-applications - No
Oil Resistant - No
UV Resistant - No
PWIS-free - Yes acc. to VDMA 24364-B2-L
General Information
With robust, flexible and resistant PVC outer sheath
For data and signal transmission in the low-frequency range.
Especially for environments where electromagnetic compatibility (EMC) is required.
Can be used universally at machine interfaces for many applications
Can be used in dry and damp environments.
For fixed installation and occasional movement
EAC-certified, CE marked
Lapp part number: 0034258
Length: 100M
