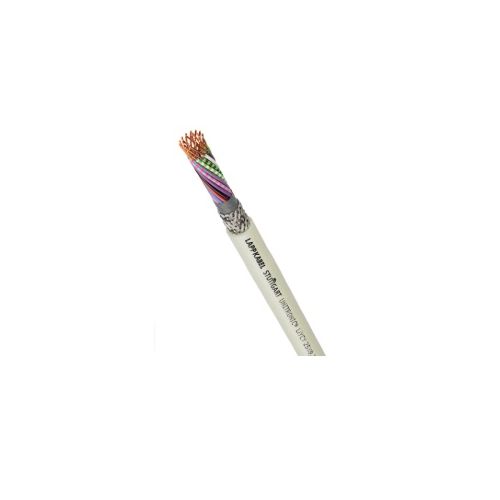

0034340 | UNITRONIC LiYCY 40x0,14 | DIN Colour Coded Cables
Screened, Low Frequency PVC Data Cable, Flame retardant, DIN 47100 colour coding, No. of cores: 40, outer diameter 10.4mm, Conductor cross section: 0.14mm²
| Complete Electronics Part No. | 0034340 |
|---|---|
| Manufacturers Part No. | 0034340 |
| Series: | UNITRONIC LIYCY |
| Number of Conductors: | 40 |
| Conductor Cross Section: | 0.14mm² |
| Shielding: | Shielded / Screened |
| Cable Jacket: | PVC |
Description
0034340 UNITRONIC® LiYCY 40X0.14
Low-frequency data cable, Shielded, Flexible
Product Design
Design based on standard VDE 0812 and EN50288-7
Flame retardant acc. to IEC 60332-1-2 resp. EN 60332-1-2
Number of conductors: 40
Shielded - Tin-plated copper braiding, coverage 85 % (nominal value)
Outer sheath: PVC compound TM52 acc. to EN 50290-2-22
Core ID, acc. to DIN 47100
Core ID, acc. to DIN 47100
Max. conductor temperature, fixed installation: -40°C to 80°C
Max. conductor temperature occasionally moved:-5°C to 70°C
Electrical / Insulation Parameters
Number of condutors: 40
Nominal core cross section: 0.14mm²
Nominal outer diameter: 10.4mm
Maximum operating voltage: 350 V (not intended to be used in conjunction with low impedance sources, such as power grids)
Conductor design: Bare copper fine wire
Conductor material: Li-stranded cables (Layered stranding)
Screened and sheathed cores are stranded in layers
Type of overall screen: Braiding with tinned copper wires
Core insulation basic material: Polyvinylchloride (PVC)
Basic material of outer sheath: Polyvinylchloride (PVC)
Outer Sheath colour: Pebble Grey (similar to RAL 7032)
Armouring type: None
Weight: 210 kg/km
Product Features
Flame retardant - Yes -IEC 60332-1-2
For continuous flexing:- No (occasional)
For torsional load: No
For torsional load: No
Windable - No
Halogen Free - No
Suitable for EX-applications - No
Oil Resistant - No
UV Resistant - No
PWIS-free - Yes acc. to VDMA 24364-B2-L
General Information
With robust, flexible and resistant PVC outer sheath
For data and signal transmission in the low-frequency range.
For use in control, regulation and measurement circuits
Especially for environments where electromagnetic compatibility (EMC) is required.
Can be used universally at machine interfaces for many applications
Can be used in dry and damp environments.
For fixed installation and occasional movement
EAC-certified, CE marked
Lapp part number: 0034340
Length: 100M
