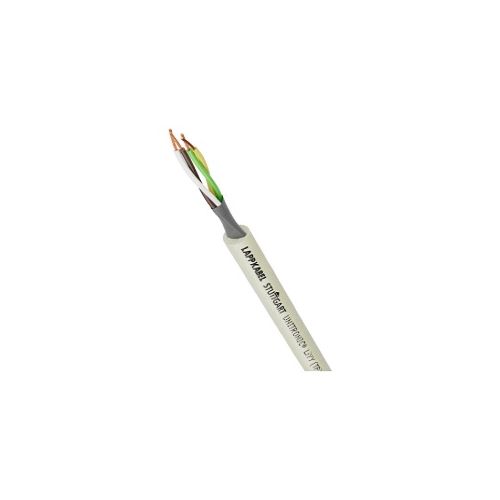

0035174 | UNITRONIC LiYY (TP) 8X2X0,5 | DIN Colour Coded Cables
Low Frequency PVC Data Cable, Twisted Pairs, DIN 47100 colour coding, Number of cores: 8 x 2, Conductor Cross section: 0.5mm²
| Complete Electronics Part No. | 0035174 |
|---|---|
| Manufacturers Part No. | 0035174 |
| Series: | UNITRONIC LIYY (TP) |
| Conductor Cross Section: | 0.5mm² |
| Shielding: | Not Shielded |
| Cable Jacket: | PVC |
| Twisted Pair: | X 8 |
Description
0035174 UNITRONIC® LiYY (TP) 8X2X0.5
Twisted pair data cable for low freq. applications
Product Design
Design based on standard VDE 0812 and EN 50288-7
Fire Retardent to IEC 60332-1-2
Number of conductors: 16
Cores: fine wire strands of bare copper acc. to IEC 60228 resp. EN IEC 60228, class 5, pairs are stranded in layers
Shielded - No
Core ID, acc. to DIN 47100
Max. conductor temperature, fixed installation: -40°C to 80°C
Max. conductor temperature occasionally moved:-5°C to 70°C
Electrical / Insulation Parameters
Number of condutors: 16
Number of Pairs: 8
Nominal core cross section 0.5 mm²
Nominal outer diameter: 12.2 mm
Maximum operating voltage: 500 V
Not intended to be used in conjunction with low impedance sources, such as power grids
Conductor material: Bare copper fine wire strands
Core insulation basic material: Polyvinylchloride (PVC)
Basic material of outer sheath: Polyvinylchloride (PVC)
Outer Sheath colour: Grey (similar RAL 7032)
Weight: 206 kg/km
Product Features
Flame retardant - Yes -IEC 60332-1-2
For continuous flexing:- No (occasional)
For torsional load: No
For torsional load: No
Windable - No
Halogen Free - No
Suitable for EX-applications - No
Oil Resistant - No
UV Resistant - No
PWIS-free - Yes acc. to VDMA 24364-B2-L
General Information
For use in control, regulation and measurement circuits
Can be used universally at machine interfaces for many applications
The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance.
For fixed installation and occasional movement
Can be used in dry and damp spaces
EAC-certified, CE marked
Lapp part number: 00351xx
Length: 100M
