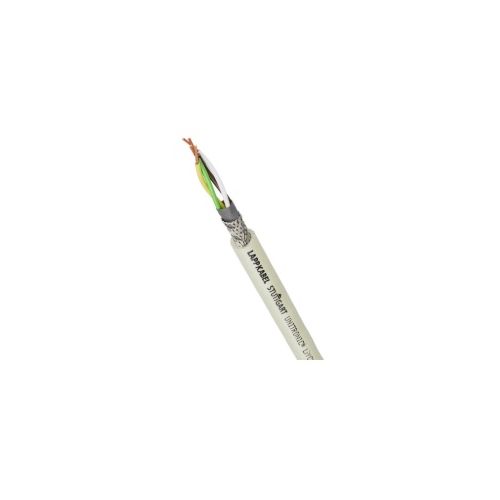

0035822 | UNITRONIC LiYCY (TP) 4X2X0,75 | DIN Colour Coded Cables
Screened, Low Frequency PVC Data Cable, Flame retardant to IEC 60332-1-2, DIN 47100 colour coding, Number of cores: 4 x 2 , Conductor Diameter: 0.75mm²
| Complete Electronics Part No. | 0035822 |
|---|---|
| Manufacturers Part No. | 0035822 |
| Series: | UNITRONIC LIYCY (TP) |
| Conductor Cross Section: | 0.75mm² |
| Shielding: | Shielded / Screened |
| Cable Jacket: | PVC |
| Twisted Pair: | X 4 |
Description
UNITRONIC LIYCY (TP) 4X2X0,75
Screened, Low Frequency PVC Data Cable
- Flame retardant to IEC 60332-1-2
- DIN 47100 colour coding
- Number of cores: 4 x 2
- Conductor Diameter: 0.75mm²
- Cable outer diameter 10.7mm
- Tinned Copper Braiding
- Outer Sheath: PVC
- Outer sheath colour: Pebble Grey (RAL7032)
- Temperature Range - Fixed install: -40°C to +80°C
- Temperature range occasional flexing: -5°C to +70°C
- For use in dry or damp rooms
