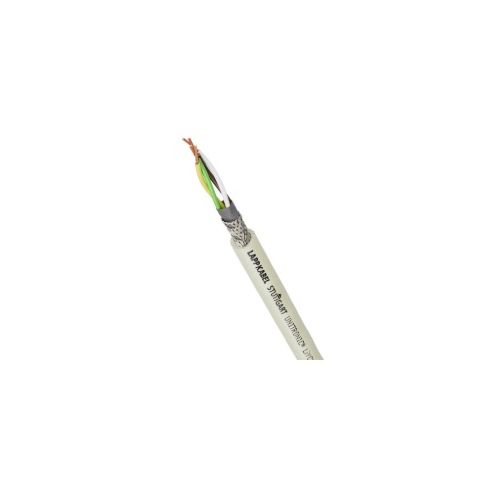

0035836 | UNITRONIC LiYCY (TP) 5X2X1 | DIN Colour Coded Cables
Screened, Low Frequency PVC Data Cable, Flame retardant to IEC 60332-1-2, DIN 47100 colour coding, Number of cores: 5 x 2 , Conductor Cross section 1.0mm²
| Complete Electronics Part No. | 0035836 |
|---|---|
| Manufacturers Part No. | 0035836 |
| Series: | UNITRONIC LIYCY (TP) |
| Conductor Cross Section: | 1.0mm² |
| Shielding: | Shielded / Screened |
| Cable Jacket: | PVC |
| Twisted Pair: | X 5 |
Description
0035836 UNITRONIC® LiYCY (TP) 5X2X1
Screened twisted pair data cable for low freq. applications
Product Design
Design based on standard VDE 0812 and EN 50288-7
Classification of fire behaviour according to EN 13501-6 and EN 50575
Number of conductors: 10
Cores twisted to pairs, pairs are stranded in layers
Braid of tinned copper, coverage 85 % (nominal value)
Core ID, acc. to DIN 47100
Max. conductor temperature, fixed installation: -40°C to 80°C
Max. conductor temperature occasionally moved:-5°C to 70°C
Electrical / Insulation Parameters
Number of condutors:10
Number of Pairs:5
Nominal core cross section 1.0 mm²
Nominal outer diameter: 11.8 mm
Maximum operating voltage: 500 V
Not intended to be used in conjunction with low impedance sources, such as power grids
Conductor material: Bare copper fine wire strands
Type of overall screen: braid of tinned copper, coverage 85 % (nominal value)
Core insulation basic material: Polyvinylchloride (PVC)
Basic material of outer sheath: Polyvinylchloride (PVC)
Outer Sheath colour: Grey (similar RAL 7032)
Armouring type: None
Weight: 266 kg/km
Product Features
Flame retardant - Yes -IEC 60332-1-2
For continuous flexing:- No (occasional)
For torsional load: No
For torsional load: No
Windable - No
Halogen Free - No
Suitable for EX-applications - No
Oil Resistant - No
UV Resistant - No
PWIS-free - Yes acc. to VDMA 24364-B2-L
General Information
For use in control, regulation and measurement circuits
Especially for environments where electromagnetic compatibility (EMC) is required.
Can be used universally at machine interfaces for many applications
The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance.
For fixed installation and occasional movement
Can be used in dry and damp spaces
EAC-certified, CE marked
Lapp part number: 0012636
Length: 100M
Length: 100M
