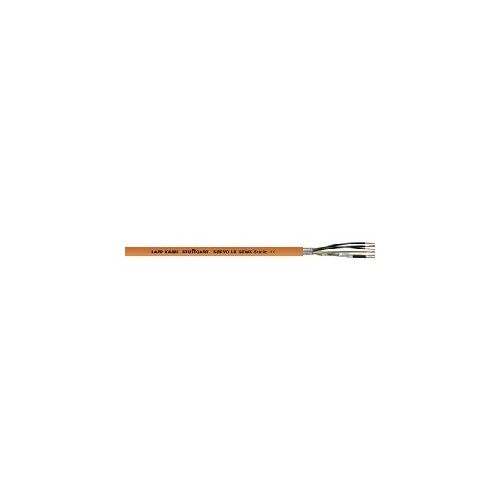

0038064 | SERVO LK SEWX STATIC 4G10+(3X1,5STD) | Servo Cable
Screened, low capacitive servo cable with PVC outer sheath for static use
| Complete Electronics Part No. | 0038064 |
|---|---|
| Manufacturers Part No. | 0038064 |
| Number of Conductors: | 4 |
| Conductor Cross Section: | 10.0mm² |
Description
SERVO LK SEWX STATIC 4G10+(3X1,5STD)
Screened servo cable with PVC outer sheath for static use
- Servomotor cables in acc. to SEW standard
- Number of Cores and mm² 4 G 10 + (3 x 1,5)
- Cable Outer Diameter: 20mm
- UL/CSA AWM certified
- EMC Compliant
- Tinned-copper braiding
- Cores twisted in short lay lengths
- PVC outer sheath, orange (RAL 2003)
- Core insulation: TPE
- With GN-YE protective conductor
- Specially designed to connect SEW servomotors
- For static and occasionally flexible use
- Flame-retardant acc. to IEC 60332-1-2,
- Reel Length: 50M
