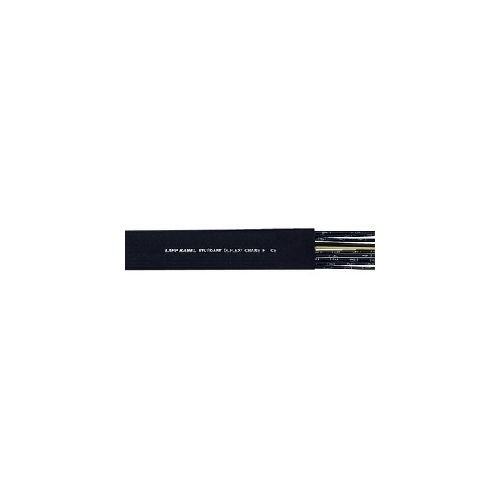

0041046 | OLFLEX CRANE F 12G1,5 | Lapp Cables
OLFLEX CRANE F, PVC flat cables, Flexible at cold temperatures, 12 Core, Core Diameter 1.5mm²
| Complete Electronics Part No. | 0041046 |
|---|---|
| Manufacturers Part No. | 0041046 |
| Number of Conductors | 12 |
| Conductor Size | 1.5mm² |
Description
OLFLEX CRANE F 12G1,5
PVC flat cables, Flexible at cold temperatures
- Power and Control weather-resistant flat rubber cable
- Number of cores: 12
- Core Diameter 1.5mm²
- for outdoor use and crane applications/conveyour technology
- Core ID: Black with white numbers
- Flame-retardant according IEC 60332-1-2
- With GN-YE protective conductor
- Outer sheath: special rubber compound
- Core insulation: rubber compound
- Copper conductor according to VDE 0295/IEC 60228
- Temp Range: Flexible use: -25°C to +90°C
- Temp Range: Fixed use: -40°C to +90°C
- Nominal Voltage: 300 / 500V
- Reel Length: 50M
