0042023 | OLFLEX LIFT F 24G1 300/500V | Lapp Cables
£7.25
Part Number 0042023 (300 in stock)

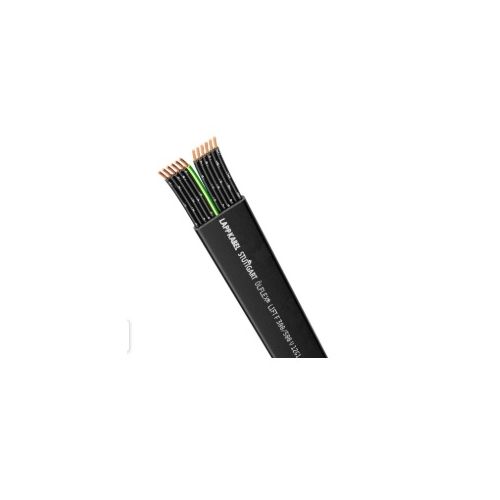

OLFLEX LIFT F 24G1 300/500V Flat Power and control rubber cable, 24 Core, Core cross section 1mm², Suitable for both indoors and outdoors
| Complete Electronics Part No. | 0042023 |
|---|---|
| Manufacturers Part No. | 0042023 |
| Number of Conductors: | 24 |
| Conductor Cross Section: | 1.0mm² |
| Shielding: | Not Shielded |
| Cable Length: | 300 Metres |
Description
0042023 |ÖLFLEX® LIFT F 24G1 300/500V
Cold flexible PVC flat cables for flexible use
Product Design
Core Idendification: Numbers
Polyvinylchloride (PVC) outer sheath
Polyvinylchloride (PVC) core insulation
Shielded: No
Cable sheath colour: Black
Shape of cable: Flat
With protective conductor
Number of Cores: 24
Conductor: Bare copper
Conductor cross section: 1.0 mm²
Conductor cross section: 1.0 mm²
Nom. flat cable width: 71.5 mm
Nom. flat cable height: 4.7 mm
Weight: 772 kg/km
Max. conductor temperature, occasionally moved -15°C to 70°C
For Flexible / Fixed installation
Electrical / Insulation Parameters
Maximum operating voltage U0/U: 300/500 V AC rms according to IEC
Conductor material: Bare copper (IEC 60228 class 6: extra-fine wire)
Core insulation: Halogen-free compound
Outer sheath material: Thermoplastic elastomers (TPE)
Outer sheath colour: Black (RAL9005)
Core identification: Colours
Core identification: Colours
Product Features
Flame retardant - Yes (IEC 60332-1-2)
Halogen Free - No
Hydrolysis resistant - No
Chemical resistant - No
Chemical resistant - No
Oil Resistant - No
UV Resistant - Yes
Weather Resistant - No
PWIS-free - Yes (VDMA 24364-B2-L)
For continuous flexing - Yes
General Information
Suitable for both indoors and outdoors thanks to PVC insulation and sheathing, which is flexible at cold temperatures
Flat cable, a much more space-saving solution than round cables
Can be used in dry, damp and wet spaces
Suitable for medium mechanical stress
For use in conveyor and hoisting equipment, cable trolley systemsFor use in conveyor and hoisting equipment, cable trolley systems
The cable design allows flexible, continuously moving use The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance.Suitable for outdoor use, subject to the temperature range
EAC Certified, CE Marked
Lapp part number: 0042023
Length: 300M
Length: 300M
A cutting charge may be applied (£7.00)
