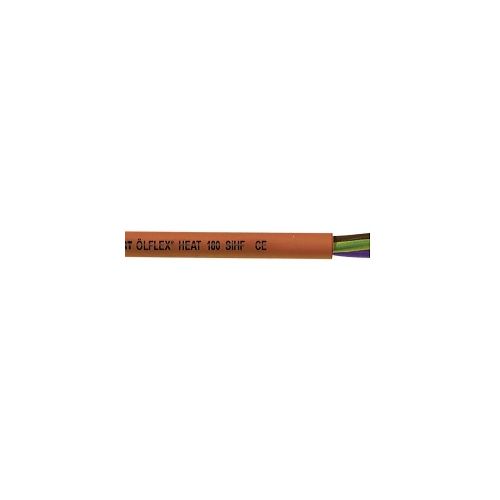

00460033 | ÖLFLEX HEAT 180 SIHF 4G0,75 | Silicone Cable
Silicone power and control cable, Number of Conductors: 4, Conductor Cross Section: 0.75mm², Nominal Voltage: U0/U: 300/500 V
| Complete Electronics Part No. | 00460033 |
|---|---|
| Manufacturers Part No. | 00460033 |
| Number of Conductors: | 4 |
| Conductor Size: | 0.75mm² |
| Rated Voltage: | 300 / 500 V |
| Special Application Series | OLFLEX HEAT 180 SiHF |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
Description
Silicone power and control cable
Number of Conductors: 4
- Conductor Cross Section: 0.75mm²
- Nominal Voltage: U0/U: 300/500 V
- Cable Outer Diameter: 7.6mm
- With Protective Conductor
- Fine-wire strand made of bare copper wires
- Cores twisted in layers
- Conductor Insulation: Silicone Based
- Silicone-based outer sheath
- Outer Sheath Colour: Red-Brown
- Cold Resistant
- Halogen Free
- Core ID: Colour Coded
- Flame Retardant (IEC 60332-1-2)
- Temperature Range: -50°C to +180°C
- Cable Length: 50Metres
