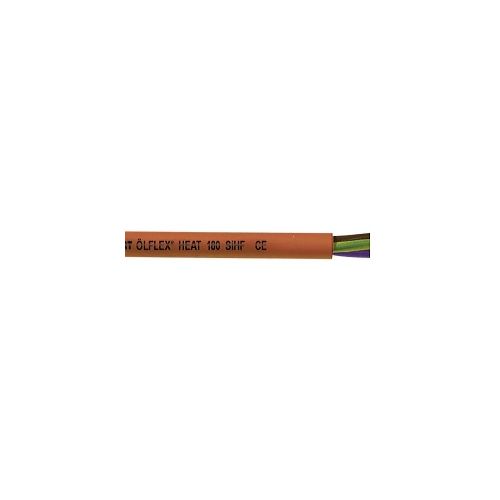

0046007 | ÖLFLEX HEAT 180 SIHF 2X1 | Silicone Cable
Silicone power and control cable, Number of Conductors: 2, Conductor Cross Section: 1.0mm², Nominal Voltage: U0/U: 300/500 V, Working temp. -60°C to 180°C
| Complete Electronics Part No. | 0046007 |
|---|---|
| Manufacturers Part No. | 0046007 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 1.0mm² |
| Rated Voltage: | 300 / 500 V |
| Shielding: | Not Shielded |
| Protective Conductor: | No |
Description
Rated voltage: U0/U: 300/500 V AC rms acc. to IEC
Test Voltage 2 kV
Temperature range, Fixed Install: -60°C to +180°C
Temperature, occasionally flexing: -25°C to +180°C
Outer Sheath Insulation: silicone compound EM9 acc. to EN 50363-2-1
Core insulation: Silicone
Outer sheath colour: Coral red like RAL 3016
Core colour code: VDE 0293-308
Starting at 6 cores: Black cores with white numbers
Adequate ventilation must be ensured at >100°C
These cables are conform to the EU-Directive 2014/35/EU (Low Voltage Directive)
Classified fire behaviour according to EU Directive 305/2011
Can be used in dry and damp rooms.
Suitable for fixed and occasional movement Installations
Silicone power and control cable
For use as power and control at high ambient temps.
Conductor Cross Section: 1.0mm²
Cable Outer Diameter: 6.6mm
Conductors: Tin-plated Copper, acc. to IEC 60228 resp. EN 60228, Class 5
Number of conductors: 2
Without GN/YE ground conductor
Number of conductors: 2
Without GN/YE ground conductor
Rated voltage: U0/U: 300/500 V AC rms acc. to IEC
Test Voltage 2 kV
Temperature range, Fixed Install: -60°C to +180°C
Temperature, occasionally flexing: -25°C to +180°C
Outer Sheath Insulation: silicone compound EM9 acc. to EN 50363-2-1
Core insulation: Silicone
Outer sheath colour: Coral red like RAL 3016
Core colour code: VDE 0293-308
Starting at 6 cores: Black cores with white numbers
Oil-resistant - Yes
PWIS-free - No
UV-resistant - No
Flame retardant - acc. to IEC 60332-1-2
Halogen Free - acc. to IEC 60754-1
Resistant to many oils, plant and animal fats and a wide range of chemicals
PWIS-free - No
UV-resistant - No
Flame retardant - acc. to IEC 60332-1-2
Halogen Free - acc. to IEC 60754-1
Resistant to many oils, plant and animal fats and a wide range of chemicals
Adequate ventilation must be ensured at >100°C
These cables are conform to the EU-Directive 2014/35/EU (Low Voltage Directive)
Classified fire behaviour according to EU Directive 305/2011
Can be used in dry and damp rooms.
Suitable for fixed and occasional movement Installations
Cable Length: 50 Metres
Lapp Part Number: 0046007
