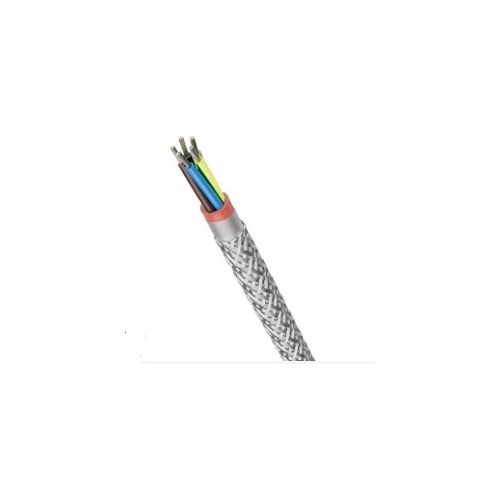

00462223 | ÖLFLEX HEAT 180 GLS 5G2,5 | Silicone Cable
Steel-armoured silicone cable, Number of Conductors: 5, Conductor Cross Section: 2.5mm², Nominal Voltage: U0/U: 300/500 V, -50°C to 180°C
| Complete Electronics Part No. | 00462223 |
|---|---|
| Manufacturers Part No. | 00462223 |
| Number of Conductors: | 5 |
| Conductor Cross Section: | 2.5mm² |
| Rated Voltage: | 300 / 500 V |
| Special Application Series: | OLFLEX HEAT 180 GLS |
| Shielding: | Steel Wire Braid |
| Protective Conductor: | Yes |
Description
Rated voltage: U0/U: 300/500 V AC rms acc. to IEC
Test Voltage 2 kV
Temperature range, Fixed Install: -50°C to +180°C
Outer Sheath Insulation: Silicone compound EM9 acc. to EN 50363-2-1
Armouring Type: Close meshed galvanised steel wire braiding
Wrapping over stranding: Glass fibre
Core colour code: VDE 0293-308
Outer Sheath Colour: Flame red (similar RAL 3000)
Halogen Free - acc. to IEC 60754-1 resp. 60754-1
Flame retardant - acc. to IEC 60332-1-2
Oil-resistant - Yes (at room temperature)
Salt Water resistant - Yes (at room temperature)
Alcohol resistant - Yes (at room temperature)
Acid resistant - Yes (at room temperature)
Alkalis resistant - Yes (at room temperature)
UV-resistant - No
PWIS-free - No
For use in environments with high operating temperatures
Including protective conductor
Adequate ventilation must be ensured at >100°C
Suitable for fixed and flexible Installations
Steel-armoured silicone power cable
Longer durability in harsh applications - 300/500 V AC
Conductor Cross Section: 2.5mm²
Conductors: Tin-plated Copper
Number of conductors: 5 including PE
IEC 60228 class 5: fine-wire
Number of conductors: 5 including PE
IEC 60228 class 5: fine-wire
Rated voltage: U0/U: 300/500 V AC rms acc. to IEC
Test Voltage 2 kV
Temperature range, Fixed Install: -50°C to +180°C
Outer Sheath Insulation: Silicone compound EM9 acc. to EN 50363-2-1
Armouring Type: Close meshed galvanised steel wire braiding
Wrapping over stranding: Glass fibre
Core colour code: VDE 0293-308
Outer Sheath Colour: Flame red (similar RAL 3000)
Halogen Free - acc. to IEC 60754-1 resp. 60754-1
Flame retardant - acc. to IEC 60332-1-2
Oil-resistant - Yes (at room temperature)
Salt Water resistant - Yes (at room temperature)
Alcohol resistant - Yes (at room temperature)
Acid resistant - Yes (at room temperature)
Alkalis resistant - Yes (at room temperature)
UV-resistant - No
PWIS-free - No
For use in environments with high operating temperatures
Including protective conductor
Adequate ventilation must be ensured at >100°C
Suitable for fixed and flexible Installations
Cable Length: 50 Metres
Lapp Part Number: 00462223
