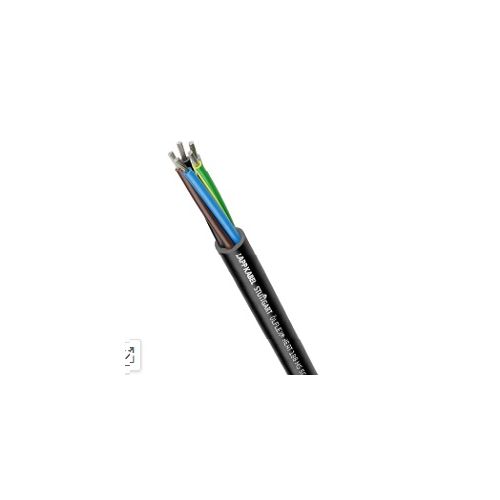

0046629 | ÖLFLEX HEAT 180 MS 3G2,5 | Silicone Cable
Certified Silicone Cable, Number of Conductors: 3, Conductor Cross Section: 2.5mm², Nominal Voltage: U0/U: 300/500 V, -60°C to 180°C
| Complete Electronics Part No. | 0046629 |
|---|---|
| Manufacturers Part No. | 0046629 |
| Number of Conductors: | 3 |
| Conductor Cross Section: | 2.5mm² |
| Rated Voltage: | 300 / 500 V |
| Special Application Series: | OLFLEX HEAT 180 MS |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
Description
Rated voltage: U0/U: 300/500 V AC rms acc. to IEC
Rated voltage: 600 V AC rms according to UL AWM
Test Voltage 2 kV
Temperature range, Fixed Install: -60°C to +180°C
Temperature, occasionally flexing: -50°C to +180°C
Short term temperature max: 200°C
Outer Sheath Insulation: Silicone compound acc. to UL AWM Style 4476 (UL 150°C)
Core insulation: Silicone
Outer sheath colour: Black similar to RAL9005
Core colour code: VDE 0293-308
Flame retardant - acc. to IEC 60332-1-2, CSA FT1
Halogen Free - acc. to IEC 60754-1
Acid resistant - Yes (At room temperature)
Alcohol resistant - Yes (At room temperature)
Caustic resistant - Yes (At room temperature)
Oil-resistant - Yes
PWIS-free - No
Salt water resistant - Yes (At room temperature)
UV-resistant - Yes
For use in environments with high operating temperatures
Including protective conductor
Adequate ventilation must be ensured at >100°C
Suitable for fixed and occasional movement Installations
Shielded silicone power cable, UL recognised
Meets the requirements of FT-1 flame test
Conductor Cross Section: 2.5mm²
Conductors: Tin-plated Copper
Number of conductors: 3 including PE
IEC 60228, class 5, Fine wire strands
Number of conductors: 3 including PE
IEC 60228, class 5, Fine wire strands
Rated voltage: U0/U: 300/500 V AC rms acc. to IEC
Rated voltage: 600 V AC rms according to UL AWM
Test Voltage 2 kV
Temperature range, Fixed Install: -60°C to +180°C
Temperature, occasionally flexing: -50°C to +180°C
Short term temperature max: 200°C
Outer Sheath Insulation: Silicone compound acc. to UL AWM Style 4476 (UL 150°C)
Core insulation: Silicone
Outer sheath colour: Black similar to RAL9005
Core colour code: VDE 0293-308
Flame retardant - acc. to IEC 60332-1-2, CSA FT1
Halogen Free - acc. to IEC 60754-1
Acid resistant - Yes (At room temperature)
Alcohol resistant - Yes (At room temperature)
Caustic resistant - Yes (At room temperature)
Oil-resistant - Yes
PWIS-free - No
Salt water resistant - Yes (At room temperature)
UV-resistant - Yes
For use in environments with high operating temperatures
Including protective conductor
Adequate ventilation must be ensured at >100°C
Suitable for fixed and occasional movement Installations
Cable Length: 50 Metres
Lapp Part Number: 0046629
