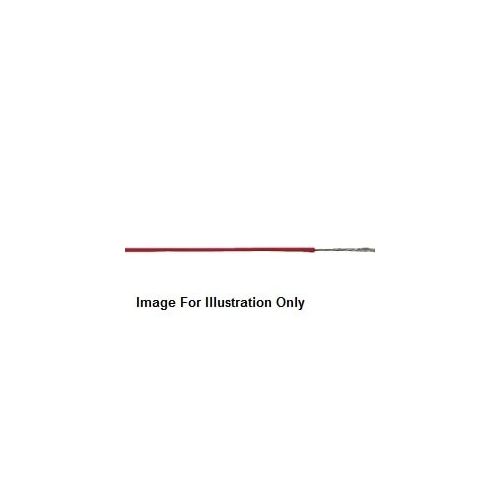

0062000 | ÖLFLEX HEAT 180 SIF 1X120 GNYE | Single Core Cable
Fine wire silicone single core Cable,With extended temperature range, Conductor Cross Section: 120mm², Core Colour: Green/Yellow, 300/500 V AC rms acc to IEC
| Complete Electronics Part No. | 0062000 |
|---|---|
| Manufacturers Part No. | 0062000 |
| Number of Conductors: | 1 |
| Conductor Cross Section: | 120mm² |
| Rated Voltage: | 300 / 500 V |
| Core Colour: | Green/Yellow |
| Special Application Series: | OLFLEX HEAT 180 SiF |
Description
Acid resistant - Yes
Alcohol resistant - Yes
Caustic resistant - Yes
Halogen Free - Yes (according to IEC 60754-1)
Oil-resistant - Yes
Salt water resistant - Yes
UV-resistant - No
PWIS-free - No
For use in environments with high operating temperatures
Suitable for fixed Installations
Adequate ventilation must be ensured
Can be used in dry and damp rooms
Fine wire silicone single core Cable
Tin-plated Copper conductor - 300/500 V AC
Conductor Cross Section: 120mm²
Conductor Outer Diameter: 18mm
Conductor: Tin Plated Copper, IEC 60228 class 5: fine-wire
Insulation: silicone compound EI2 acc. to EN 50363-1
Insulation: silicone compound EI2 acc. to EN 50363-1
Core Colour: Green/Yellow
Rated voltage: U0/U: 300/500 V AC rms acc to IEC
Test Voltage 2 kV
Test Voltage 2 kV
Flame retardance according to IEC 60332-1-2
Temperature range, Fixed Install: -50°C to +180°C
Short term temperature max: 200°C
Fire behaviour acc. to EN 13501-6 and EN 50575
Temperature range, Fixed Install: -50°C to +180°C
Short term temperature max: 200°C
Fire behaviour acc. to EN 13501-6 and EN 50575
Acid resistant - Yes
Alcohol resistant - Yes
Caustic resistant - Yes
Halogen Free - Yes (according to IEC 60754-1)
Oil-resistant - Yes
Salt water resistant - Yes
UV-resistant - No
PWIS-free - No
For use in environments with high operating temperatures
Suitable for fixed Installations
Adequate ventilation must be ensured
Can be used in dry and damp rooms
Cable Length: 500M
Lapp Part Number: 0062000
