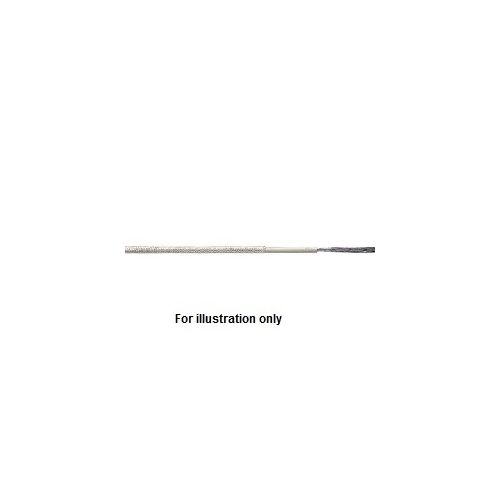

0065107 | ÖLFLEX HEAT 180 SIF/GL 1X4 | Single Core Cable
Silicone single core cable, Conductor Material: Fine wire Tin Plated Copper, Conductor Cross Section: 4.0mm², Cable Outer Diameter: 4.6mm, white
| Complete Electronics Part No. | 0065107 |
|---|---|
| Manufacturers Part No. | 0065107 |
| Number of Conductors: | 1 |
| Conductor Cross Section: | 4.0mm² |
| Rated Voltage: | 300 / 500 V |
| Core Colour: | White |
| Special Application Series: | OLFLEX HEAT 180 SiF / GL |
Description
Oil-resistant - Yes
Halogen Free - Yes (according to IEC 60754-1)
UV-resistant - No
Water resistant - No
Chemical resistant - No
PWIS-free - No
Silicone single core cable
With glass fibre braiding
Conductor Cross Section: 4.0mm²
Cable Outer Diameter: 4.6mm
Fine-wire strand ( IEC 60228 class 5) made of Tin plated copper
Core Colour:White
Core Colour:White
Flame retardance according to IEC 60332-1-2
Temperature range, Fixed Install: -50°C to +180°C
Rated voltage: U0/U: 300/500 V AC rms according to IEC
Test Voltage 2 kV AC
Temperature range, Fixed Install: -50°C to +180°C
Rated voltage: U0/U: 300/500 V AC rms according to IEC
Test Voltage 2 kV AC
Oil-resistant - Yes
Halogen Free - Yes (according to IEC 60754-1)
UV-resistant - No
Water resistant - No
Chemical resistant - No
PWIS-free - No
For use in environments with high operating temperatures
Core insulation base material: Silicone
Cable Length: 100M
Lapp Part Number: 0065107
