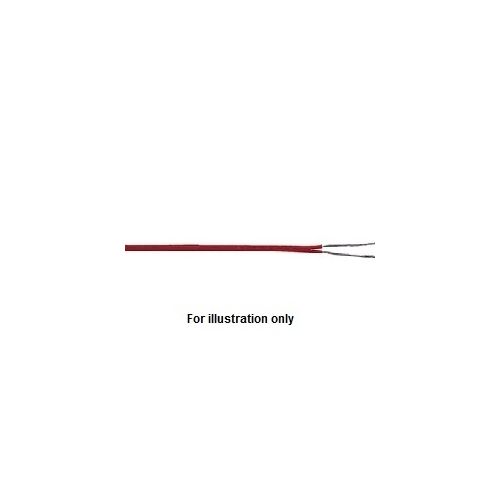

0065201 | ÖLFLEX HEAT 180 SIZ 2X0,5 | Twin Core Cable
Silicone twin core cable, For use in areas with high ambient temperatures, Conductor Cross Section: 2 x 0.5mm², Cable Outer Diameter: 2.1 x 4.2mm, red
| Complete Electronics Part No. | 0065201 |
|---|---|
| Manufacturers Part No. | 0065201 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 0.5mm² |
| Rated Voltage: | 300 / 500 V |
| Core Colour: | Red |
| Special Application Series: | OLFLEX HEAT 180 SIZ |
Description
Oil-resistant - Yes
Halogen Free - Yes (according to IEC 60754-1)
UV-resistant - No
Water resistant - No
Chemical resistant - No
PWIS-free - No
Silicone insulated single core cable
For use in areas with high ambient temperatures
Conductor Cross Section: 2 x 0.5mm²
Cable Outer Diameter: 2.1 x 4.2mm
Resistant to a multitude of oils
Core insulation: Red
Flame retardance according to IEC 60332-1-2
Temperature range, Fixed Install: -50°C to +180°C
Rated voltage: U0/U: 300/500 V AC rms according to IEC
Rated voltage: U0/U: 300/500 V AC rms according to IEC
Oil-resistant - Yes
Halogen Free - Yes (according to IEC 60754-1)
UV-resistant - No
Water resistant - No
Chemical resistant - No
PWIS-free - No
For use in environments with high operating temperatures
Fine-wire strand ( IEC 60228 class 5) made of Tin plated copper
Core insulation base material: Silicone
Fine-wire strand ( IEC 60228 class 5) made of Tin plated copper
Core insulation base material: Silicone
Cable Length: 100M
Lapp Part Number: 0065201
