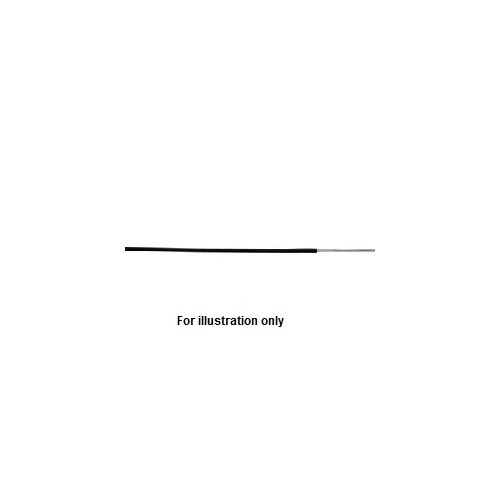

0069002 | ÖLFLEX HEAT 180 SID 1X0,75 BU | Single Core Cable
Silicone single core cable with solid conductor, For use in areas with high ambient temperatures, Conductor Cross Section: 0.75mm², Outer Diameter: 2.2mm
| Complete Electronics Part No. | 0069002 |
|---|---|
| Manufacturers Part No. | 0069002 |
| Number of Conductors: | 1 |
| Conductor Cross Section: | 0.75mm² |
| Rated Voltage: | 300 / 500 V |
| Core Colour: | Blue |
| Special Application Series: | OLFLEX HEAT 180 SID |
Description
Oil-resistant - Yes
Halogen Free - Yes (according to IEC 60754-1)
UV-resistant - No
Water resistant - No
Chemical resistant - No
PWIS-free - No
For use in environments with high operating temperatures
Core insulation base material: Silicone
Suitable for fixed Installations
Silicone single core cable with solid conductor
For use in areas with high ambient temperatures
Conductor Cross Section: 0.75mm²
Cable Outer Diameter: 2.2mm
Core Colour: Blue
IEC 60228 class 1: solid conductor
Flame retardance according to IEC 60332-1-2
Temperature range, Fixed Install: -50°C to +180°C
Short-term temperature peak: 200 °C
Rated voltage: U0/U: 300/500 V AC rms according to IEC
Test Voltage 2 kV AC
Temperature range, Fixed Install: -50°C to +180°C
Short-term temperature peak: 200 °C
Rated voltage: U0/U: 300/500 V AC rms according to IEC
Test Voltage 2 kV AC
Oil-resistant - Yes
Halogen Free - Yes (according to IEC 60754-1)
UV-resistant - No
Water resistant - No
Chemical resistant - No
PWIS-free - No
For use in environments with high operating temperatures
Core insulation base material: Silicone
Suitable for fixed Installations
Cable Length: 100M
Lapp Part Number: 0069002
