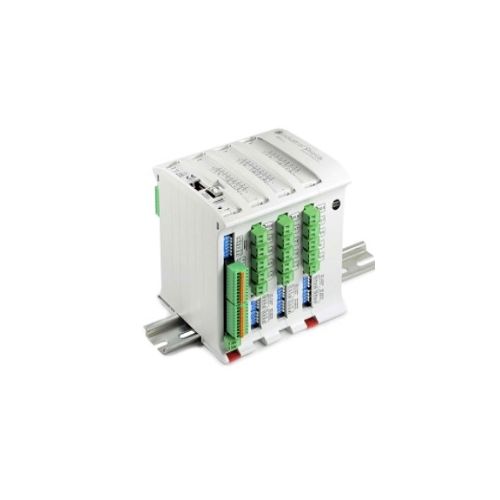

M-DUINO PLC Arduino Ethernet

• ETHERNET & WiFi & BLUETOOTH
• Analog/Digital/Relay PLUS
• Input Voltage: 12 to 24Vdc (Fuse protection (2.5A) Polarity protection)
• Flash Memory: 256KB of which 8KB used by bootloader
• SRAM: 8 KB
• EEPROM: 4 KB
• Arduino Board: Arduino Mega 2560

This PLC can be programmed using the Arduino IDE platform

 Inputs (Arduino Mega included)

• – 29 Inputs:

  (14x) Analog Inputs (0-10Vdc, 10bit) / Digital Inputs (7-24Vdc) configurable by software.

  (9x) Isolated Digital Inputs (7-24Vdc)

  (6x) Interrupt Inputs (7-24Vdc). "Can work like Digital Input (24Vdc)

Outputs (Arduino Mega included)

• – 25 Outputs:

(8x) Relay Outputs (220Vac - 5A)

(8x) Analog (0-10Vdc, 8bit) / Digital (5-24Vdc) Outputs

(9x) Digital Outputs (Isolated 24Vdc max)

Communication:

- (1x) WiFi & Bluetooth LE (based on ESP32)

– (1x) Ethernet port.

– (1x) USB port (type B).

– (1x) I2C port. (Interface with other Industrial Shields, sensors, I/Os modules)

– (1x) RS-232 port.

– (1x) HALF/FULL Duplex RS-485 port.

– (1x) SPI external port (Using MOSI, MISO, SS pins of Arduino)

– TCP IP / Modbus TCP. / Modbus RTU

– WebServer capacity (just through Ethernet)

 – Industrial Protocols

Other technical specifications

RTC (Real Time Clock. NOTE: I2C port used. See pinout modification)

µSD Socket (using SPI port, chip select D53 pin).

100x75x115mm

DIN Rail mounting.

Max consum.: 1.2A

Flash Memory: 256kB (8kB for bootloader)

SRAM: 8kB

EEPROM: 4kB

Clock Speed: 16MHz

 *For SPI you need to choose another pin for Select Function (You can choose, SDA, SCL, Rx, Tx, Pins of Arduino)
