012002000400F | Raspberry PLC Ethernet 42 I/Os
Raspberry PLC Ethernet 42 I/Os Analog/Digital PLUS (Raspberry Pi 4B 2GB RAM Included + 8GB pSLC SIM W/Linux) Internal FAN included
| Complete Electronics Part No. | 012002000400F |
|---|---|
| Manufacturers Part No. | 012002000400F |
| Number of I/O's | 42 |
| Ram Size: | 2 GB |
Description

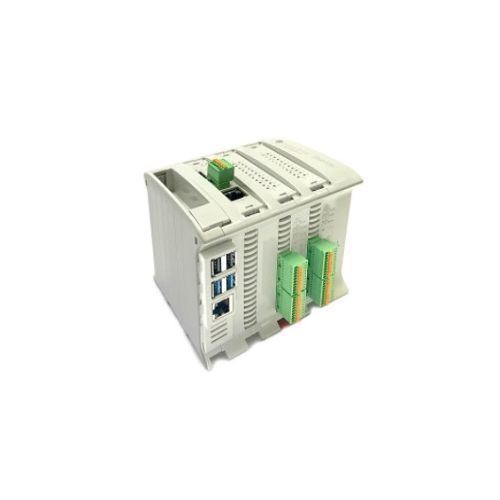

Raspberry PLC Ethernet 42 I/Os
Raspberry PLC Ethernet 42 I/Os Analog/Digital PLUS (Raspberry Pi 4B 2GB RAM Included + 8GB pSLC SIM W/Linux) Internal Fan Included
Modular PLC
This equipment based on the Raspberry Pi technology is designed for a professional use. This PLC has up to 36 Digital Inputs, 16 Analog Inputs, 22 Digital Outputs, 8 Analog Outputs, up to 23 Relays and 6 Interrupts.
Communication
It also contains several communication ports, which provide great flexibility and control. The Raspberry PLC family offers the CAN bus, double Ethernet port, double RS-485, WiFi, Bluetooth.
Operating System
This PLC runs a Linux or a Raspberry Pi OS (previously called Raspbian), a Debian based operating system with all the flexibility and power that the Linux operating system offers.
- WiFi, Bluetooth, Ethernet x2, RS-485x2, CAN Bus
- RTC (Real Time Clock)
- UPS (Uninterruptible Power Supply)
- Up to 36 Digital Inputs
- Up to 16 Analog Inputs
- Up to 22 Digital Outputs
- Up to 8 Analog Outputs
- Up to 23 Relay
- Up to 6 Interrupt Inputs
