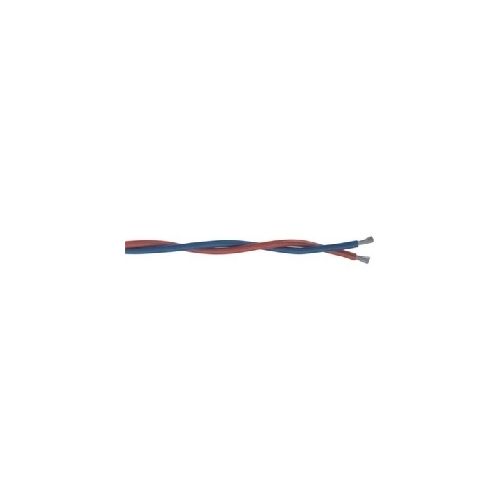

0151001 | KE1L FE/CUNI LX 2X1,5 DIN | Paired Cables
PVC Paired Extension and Compensating Cable, Single Paired, Thermocouple: Fe/CuNi, Cable Design: PVC, No. of Cores & Diam.: 2 x 1.5mm², No outer sheath
| Complete Electronics Part No. | 0151001 |
|---|---|
| Manufacturers Part No. | 0151001 |
| Number of Conductors: | 2 |
| Conductor Size: | 1.5mm² |
| Special Application Series | Single Paired Temperature Measure |
| Cable Length: | 100 Metres |
Description
Core layering: Cores twisted together
Core colour code: IEC DIN 43710
Temperature range, Fixed Install: -40°C to 80°C
Temperature, occasionally flexing: -5°C to 80°C
Oil-resistant - No
Chemical resistant - No
UV-resistant - No
Halogen Free - No
Flame retardant - No
PWIS-free - Yes acc. to VDMA 24364-B2-L
Cable Length: 100 metres
Lapp Part Number: 0151001
PVC insulated cable which transmits the thermoelectric voltage of Fe/CuNi thermocouples
LX alloying, accuracy class 2 according DIN 43722
Polyvinylchloride (PVC) compensating cables
Single Paired insulated cables
Single Paired Version
Thermocouple: Fe/CuNi
Product Make Up: DIN LX
Cable Design: PVC
Number of Cores & Diameter: 2 x 1.5mm²
Cable Outer Diameter: 5.4mm
For use in temperature measurement
Conductor design: 48 x 0.20 mm
Positive conductor: Fe (iron), Red
Negative conductor: CuNi (cupronickel), Blue
Core insulation: PVC compound
Outer Sheath: No outer sheath
Outer sheath colour: No outer sheath
Positive conductor: Fe (iron), Red
Negative conductor: CuNi (cupronickel), Blue
Core insulation: PVC compound
Outer Sheath: No outer sheath
Outer sheath colour: No outer sheath
Core layering: Cores twisted together
Core colour code: IEC DIN 43710
No protective conductor
Temperature range, Fixed Install: -40°C to 80°C
Temperature, occasionally flexing: -5°C to 80°C
Oil-resistant - No
Chemical resistant - No
UV-resistant - No
Halogen Free - No
Flame retardant - No
PWIS-free - Yes acc. to VDMA 24364-B2-L
Cable Length: 100 metres
Lapp Part Number: 0151001
PVC insulated cable which transmits the thermoelectric voltage of Fe/CuNi thermocouples
LX alloying, accuracy class 2 according DIN 43722
Only to be installed outdoors with UV and humidity protection
For fixed and occasional flexing installations
For fixed and occasional flexing installations
