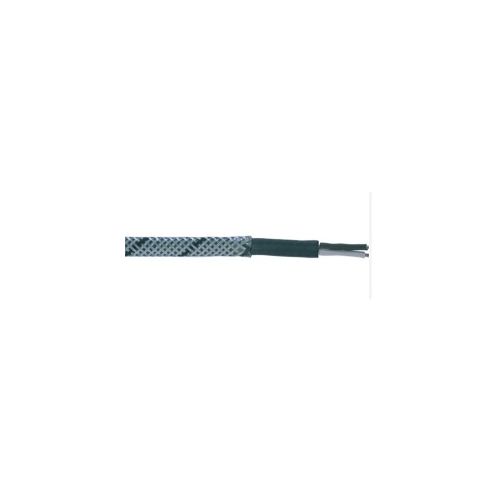

0151011 | KE9L-S FE/CUNI LX 2X1,5 DIN | Paired Cables
PVC Paired Extension and Compensating Cable, Single Pair Version, Thermocouple: Fe/CuNi, DIN LX, PVC-PVC-S, Number of Cores & Diameter: 2 x 1.5mm²
| Complete Electronics Part No. | 0151011 |
|---|---|
| Manufacturers Part No. | 0151011 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 1.5mm² |
| Special Application Series: | Single Paired Temperature Measure |
| Shielding: | Steel Wire Braid |
Description
Core layering: Cores twisted together
Armouring type: Galvanized steel wire braiding with interweaved, blue identification thread
Core colour code: DIN 43710
No protective conductor
Temperature range, Fixed Install: -40°C to 80°C
Temperature, occasionally flexing: -5°C to 80°C
Oil-resistant - No
Chemical resistant - No
UV-resistant - No
Halogen Free - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - Yes acc. to VDMA 24364-B2-L
Cable Length: 50 metres
Lapp Part Number: 0151011
PVC insulated cable which transmits the thermoelectric voltage of Fe/CuNi thermocouples
LX alloying, accuracy class 2 according DIN 43722
Polyvinylchloride (PVC) compensating cables
Single Paired insulated cables - armoured
Single Paired Version
Thermocouple: Fe/CuNi
Product Make Up: DIN LX
Cable Design: PVC-PVC-S
Number of Cores & Diameter: 2 x 1.5mm²
Cable Outer Diameter: 8.0mm
For use in temperature measurement
Conductor design: 48 x 0.20 mm
Positive conductor: Fe (iron), Red
Negative conductor: CuNi (cupronickel), Blue
Core insulation: PVC compound
Outer Sheath: PVC Compound
Outer sheath colour: Blue
Positive conductor: Fe (iron), Red
Negative conductor: CuNi (cupronickel), Blue
Core insulation: PVC compound
Outer Sheath: PVC Compound
Outer sheath colour: Blue
Core layering: Cores twisted together
Armouring type: Galvanized steel wire braiding with interweaved, blue identification thread
Core colour code: DIN 43710
No protective conductor
Temperature range, Fixed Install: -40°C to 80°C
Temperature, occasionally flexing: -5°C to 80°C
Oil-resistant - No
Chemical resistant - No
UV-resistant - No
Halogen Free - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - Yes acc. to VDMA 24364-B2-L
Cable Length: 50 metres
Lapp Part Number: 0151011
PVC insulated cable which transmits the thermoelectric voltage of Fe/CuNi thermocouples
LX alloying, accuracy class 2 according DIN 43722
Only to be installed outdoors with UV and humidity protection
The steel wire armouring serves as mechanical protection
For fixed and occasional flexing installations
The steel wire armouring serves as mechanical protection
For fixed and occasional flexing installations
