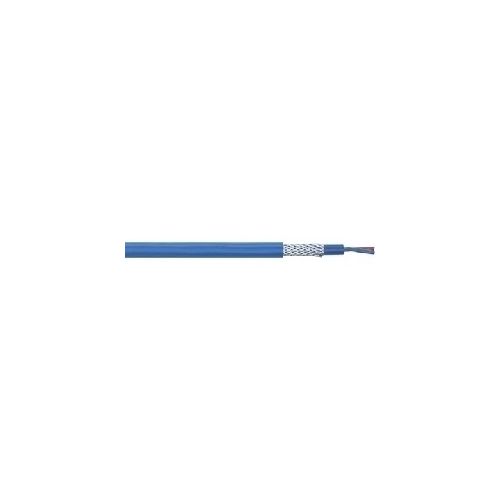

0151023 | KE15L-SIL-S FE/CUNI LX 2X1,5 DIN Round | Paired Cables
Extension and Compensating Cable, Single Paired Version, Thermocouple: Fe/CuNi, Make Up: DIN LX, Cable Design: SIL-SIL-S round, No. of Cores & Diam.: 2 x 1.5mm²
| Complete Electronics Part No. | 0151023 |
|---|---|
| Manufacturers Part No. | 0151023 |
| Number of Conductors: | 2 |
| Conductor Size: | 1.5mm² |
| Special Application Series | Single Paired Temperature Measure |
| Cable Jacket: | Armoured |
| Cable Length: | 50 Metres |
Description
Core layering: Cores twisted together
Armouring type: Galvanized steel wire braiding with interweaved blue identification thread
Core colour code: DIN 43710
No protective conductor
Temperature range, Fixed Install: -50°C to 200°C
Temperature, occasionally flexing: -25°C to 200°C
Oil-resistant - No
Chemical resistant - Yes
UV-resistant - No
Halogen Free - Yes
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 50 metres
Lapp Part Number: 0151023
Silicone insulated cable which transmits the thermoelectric voltage of Fe/CuNi thermocouples
LX alloying, accuracy class 2 according DIN 43722
Only to be installed outdoors with UV and humidity protection
The steel wire armouring serves as mechanical protection.
For fixed and occasional flexing installations
Compensating cables, paired - Silicone Insulation
Paired insulated cables - armoured
Single Paired Version
Thermocouple: Fe/CuNi
Product Make Up: DIN LX
Cable Design: SIL-SIL-S round
Number of Cores & Diameter: 2 x 1.5mm²
Cable Outer Diameter: 7.8mm
For use in temperature measurement
Conductor design: 48 x 0.20 mm
Positive conductor: Fe (iron), Red
Negative conductor: CuNi (cupronickel), Blue
Core insulation: Silicone compound
Outer sheath colour: Blue
Positive conductor: Fe (iron), Red
Negative conductor: CuNi (cupronickel), Blue
Core insulation: Silicone compound
Outer sheath colour: Blue
Core layering: Cores twisted together
Armouring type: Galvanized steel wire braiding with interweaved blue identification thread
Core colour code: DIN 43710
No protective conductor
Temperature range, Fixed Install: -50°C to 200°C
Temperature, occasionally flexing: -25°C to 200°C
Oil-resistant - No
Chemical resistant - Yes
UV-resistant - No
Halogen Free - Yes
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 50 metres
Lapp Part Number: 0151023
Silicone insulated cable which transmits the thermoelectric voltage of Fe/CuNi thermocouples
LX alloying, accuracy class 2 according DIN 43722
Only to be installed outdoors with UV and humidity protection
The steel wire armouring serves as mechanical protection.
For fixed and occasional flexing installations
