0151040 | KE41L-SIL FE/CUNI LX 2X0,5 DIN | Paired Cables

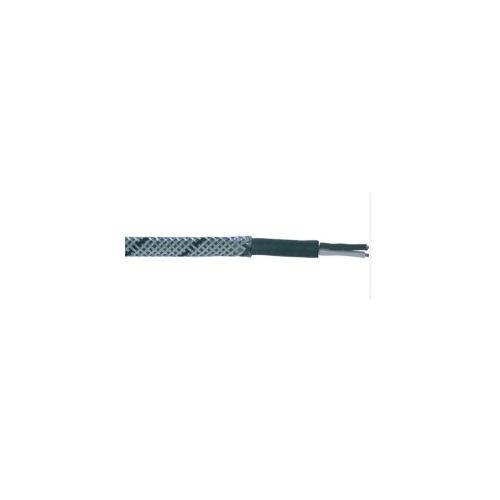

Armoured Silicone Extension and Compensating Cable, Single Pair, Thermocouple: Fe/CuNi, Make Up: DIN LX, Design: SIL-SIL-S, No. of Cores & Diam.: 2 x 0.5mm²
| Complete Electronics Part No. | 0151040 |
|---|---|
| Manufacturers Part No. | 0151040 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 0.5mm² |
| Special Application Series: | Single Paired Temperature Measure |
| Cable Jacket: | Armoured |
| Cable Length: | 100 Metres |
Description
Core layering: Cores parallel next to each other
Galvanized steel wire braiding with interweaved, blue identification thread
Core colour code: DIN 43710
No protective conductor
Temperature range, Fixed Install: -50°C to 180°C
Temperature, occasionally flexing: -25°C to 180°C
Oil-resistant - No
Chemical resistant - Yes
UV-resistant - No
Halogen Free - Yes
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 100 metres
Lapp Part Number: 0151040
Silicone insulated cable which transmits the thermoelectric voltage of Fe/CuNi thermocouples
LX alloying, accuracy class 2 according DIN 43722
Silicone Extension and compensating cables
Single Paired insulated cables - armoured
Single Paired Version
Thermocouple: Fe/CuNi
Product Make Up: DIN LX
Cable Design: SIL-SIL-S Oval
Number of Cores & Diameter: 2 x 0.5mm²
Outer Dimensions W x H: 6.4 x 4.4mm
For use in temperature measurement
Conductor design: 16 x 0.20 mm
Positive conductor: Fe (iron), Red
Negative conductor: CuNi (cupronickel), Blue
Core insulation: Silicone compound
Outer Sheath: Silicone Compound
Outer sheath colour: Blue
Positive conductor: Fe (iron), Red
Negative conductor: CuNi (cupronickel), Blue
Core insulation: Silicone compound
Outer Sheath: Silicone Compound
Outer sheath colour: Blue
Core layering: Cores parallel next to each other
Galvanized steel wire braiding with interweaved, blue identification thread
Core colour code: DIN 43710
No protective conductor
Temperature range, Fixed Install: -50°C to 180°C
Temperature, occasionally flexing: -25°C to 180°C
Oil-resistant - No
Chemical resistant - Yes
UV-resistant - No
Halogen Free - Yes
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 100 metres
Lapp Part Number: 0151040
Silicone insulated cable which transmits the thermoelectric voltage of Fe/CuNi thermocouples
LX alloying, accuracy class 2 according DIN 43722
The steel wire armouring serves as mechanical protection
Only to be installed outdoors with UV and humidity protection
For fixed and occasional flexing installations
Only to be installed outdoors with UV and humidity protection
For fixed and occasional flexing installations
