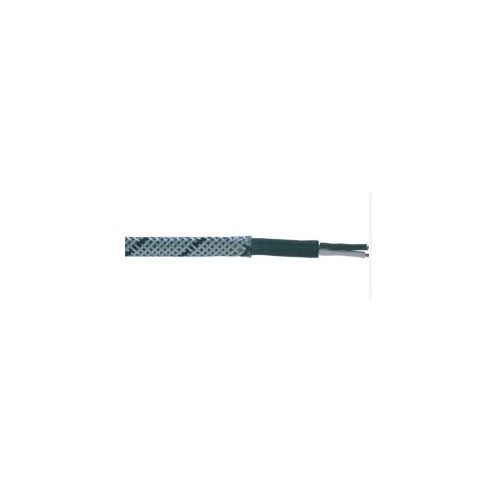

0152030 | KN41L-SIL NICR/NI KCA 2X0,5 DIN | Paired Cables
Silicone Extension and Compensating Cable, Single Paired, Thermocouple: NiCr/Ni, Make Up: DIN KCA, Design: SIL-SIL-S Oval, No. of Cores & Diam.: 2 x 0.5mm²
| Complete Electronics Part No. | 0152030 |
|---|---|
| Manufacturers Part No. | 0152030 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 0.5mm² |
| Special Application Series: | Single Paired Temperature Measure |
| Cable Jacket: | Armoured |
| Cable Length: | 100 Metres |
Description
Core layering: Cores parallel next to each other
Galvanized steel wire braiding with interweaved, green identification thread
Core colour code: DIN 43710
No protective conductor
Temperature range, Fixed Install: -50°C to 180°C
Temperature, occasionally flexing: -25°C to 180°C
Oil-resistant - No
Chemical resistant - Yes
UV-resistant - No
Halogen Free - Yes
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 100 metres
Lapp Part Number: 0152030
Silicone insulated cable which transmits the thermoelectric voltage of NiCr/Ni thermocouples
KCA alloying, accuracy class 2 according DIN 43722
The steel wire armouring serves as mechanical protection
Only to be installed outdoors with UV and humidity protection
For fixed and occasional flexing installations
Silicone Extension and compensating cables
Single Paired insulated cables - armoured
Single Paired Version
Thermocouple: NiCr/Ni
Product Make Up: DIN KCA
Cable Design: SIL-SIL-S Oval
Number of Cores & Diameter: 2 x 0.5mm²
Outer Dimensions W x H: 6.4 x 4.4mm
For use in temperature measurement
Conductor design: 16 x 0.20 mm
Positive conductor: Fe (iron), Red
Negative conductor: CuNi (cupronickel), Green
Core insulation: Silicone compound
Outer Sheath: Silicone Compound
Outer sheath colour: Green
Positive conductor: Fe (iron), Red
Negative conductor: CuNi (cupronickel), Green
Core insulation: Silicone compound
Outer Sheath: Silicone Compound
Outer sheath colour: Green
Core layering: Cores parallel next to each other
Galvanized steel wire braiding with interweaved, green identification thread
Core colour code: DIN 43710
No protective conductor
Temperature range, Fixed Install: -50°C to 180°C
Temperature, occasionally flexing: -25°C to 180°C
Oil-resistant - No
Chemical resistant - Yes
UV-resistant - No
Halogen Free - Yes
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 100 metres
Lapp Part Number: 0152030
Silicone insulated cable which transmits the thermoelectric voltage of NiCr/Ni thermocouples
KCA alloying, accuracy class 2 according DIN 43722
The steel wire armouring serves as mechanical protection
Only to be installed outdoors with UV and humidity protection
For fixed and occasional flexing installations
