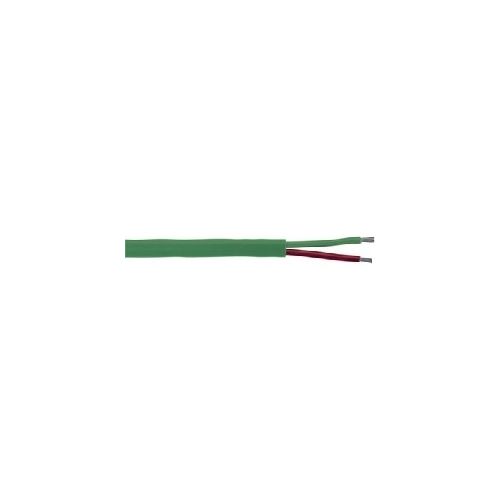

0152052 | KN5-022L-CY NICR/NI KCA 2X0,22 DIN | Paired Cables
PVC insulated Extension and Compensating Cable, Single Paired Version, Thermocouple: NiCr/Ni, Number of Cores & Diameter: 2 x 0.22mm²
| Complete Electronics Part No. | 0152052 |
|---|---|
| Manufacturers Part No. | 0152052 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 0.22mm² |
| Special Application Series: | Single Paired Temperature Measure |
| Shielding: | Shielded / Screened |
| Cable Length: | 100 Metres |
Description
Oil-resistant - No
Chemical resistant - No
UV-resistant - No
Halogen Free - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - Yes, acc. to VDMA 24364-B2-L
Cable Length: 100 metres
Lapp Part Number:0152052
PVC insulated cable which transmits the thermo-electric voltage of NiCr/Ni thermocouples
KCA alloying, accuracy class 2 according DIN 43722
For flexible use and fixed installation in dry and damp rooms
The copper braiding screens the cable against electromagnetic interference
May only be installed outdoors with UV protection and observation of the max. permitted temperature range
PVC insulated thermocouple cable
Single Paired insulated cables - Screened
Single Paired Version
Thermocouple: NiCr/Ni
Product Make Up: DIN KCA
Cable Design: PVC-PVC-C-PVC
Number of Cores & Diameter: 2 x 0.22mm²
Cable Outer Diameter: 4.9mm
For use in temperature measurement
Conductor design: 0.22 mm² (7 x 0.20 mm)
Positive conductor: Fe (iron), Red
Negative conductor: CuNi (cupronickel), Green
Core insulation base material: PVC
Outer sheath material: PVC, Green
Inner sheath material: PVC, Green
Screening: Tinned copper braiding
Cores twisted together
Core colour code: DIN 43710
Positive conductor: Fe (iron), Red
Negative conductor: CuNi (cupronickel), Green
Core insulation base material: PVC
Outer sheath material: PVC, Green
Inner sheath material: PVC, Green
Screening: Tinned copper braiding
Cores twisted together
Core colour code: DIN 43710
Limiting deviation class 2: ±100 µV (±2.5 °C) / measuring point temperature +900°C
Temperature range, Fixed Install: -40°C to 80°C
Temperature, occasionally flexing: -5°C to 80°C
Temperature range, Fixed Install: -40°C to 80°C
Temperature, occasionally flexing: -5°C to 80°C
Oil-resistant - No
Chemical resistant - No
UV-resistant - No
Halogen Free - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - Yes, acc. to VDMA 24364-B2-L
Cable Length: 100 metres
Lapp Part Number:0152052
PVC insulated cable which transmits the thermo-electric voltage of NiCr/Ni thermocouples
KCA alloying, accuracy class 2 according DIN 43722
For flexible use and fixed installation in dry and damp rooms
The copper braiding screens the cable against electromagnetic interference
May only be installed outdoors with UV protection and observation of the max. permitted temperature range
