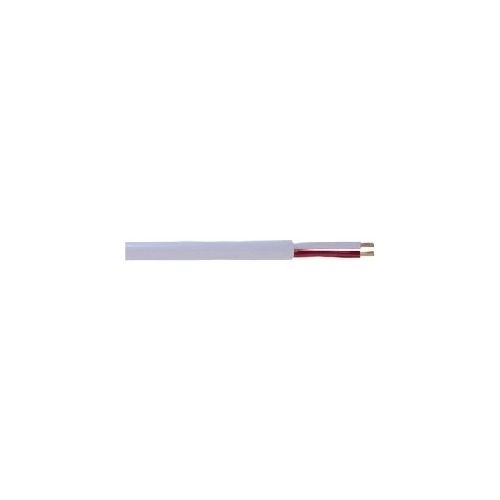

0153007 | KP4L-SIL-S PTRH/PT RCB,SCB2X1,5 | Paired Cable
Armoured Paired Extension and Compensating Cable, Single Paired Version, Thermocouple: PtRh/Pt, Number of Cores & Diameter: 2 x 1.5mm²
| Complete Electronics Part No. | 0153007 |
|---|---|
| Manufacturers Part No. | 0153007 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 1.5mm² |
| Special Application Series: | Single Paired Temperature Measure |
| Cable Jacket: | Armoured |
| Cable Length: | 50 Metres |
Description
Core layering: Cores parallel next to each other
Outer sheath: Silicone compound, colour: white
Armouring type: Galvanized steel wire braiding with interweaved white identification thread
Core colour code: DIN 43710
No protective conductor
Temperature range, Fixed Install: -50°C to 200°C
Temperature, occasionally flexing: -25°C to 200°C
Oil-resistant - No
Chemical resistant - No
UV-resistant - No
Halogen Free - Yes
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 50 metres
Lapp Part Number: 0153007
Glass fibre / silicone insulated cable which transmits the thermoelectric voltage of PtRh/Pt thermocouples
RCB/SCB alloying, accuracy class 2 according DIN 43722
Only to be installed outdoors with UV and humidity protection
For fixed and occasional flexing installations
Compensating cables, paired - Glass Fibre Insulation
Paired insulated cables - armoured
Single Paired Version
Thermocouple: PtRh/Pt
Product Make Up: DIN RCB, SCB
Cable Design: SIL-SIL-S Oval
Number of Cores & Diameter: 2 x 1.5mm²
Outer Dimensions W x H: 8.0 x 5.2mm
For use in temperature measurement
Conductor design: 48 x 0.20 mm
Positive conductor: Cu (Copper), Red
Negative conductor: CuNi (cupronickel), White
Core insulation: Silicone compound
Inner sheath colour: White
Positive conductor: Cu (Copper), Red
Negative conductor: CuNi (cupronickel), White
Core insulation: Silicone compound
Inner sheath colour: White
Core layering: Cores parallel next to each other
Outer sheath: Silicone compound, colour: white
Armouring type: Galvanized steel wire braiding with interweaved white identification thread
Core colour code: DIN 43710
No protective conductor
Temperature range, Fixed Install: -50°C to 200°C
Temperature, occasionally flexing: -25°C to 200°C
Oil-resistant - No
Chemical resistant - No
UV-resistant - No
Halogen Free - Yes
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 50 metres
Lapp Part Number: 0153007
Glass fibre / silicone insulated cable which transmits the thermoelectric voltage of PtRh/Pt thermocouples
RCB/SCB alloying, accuracy class 2 according DIN 43722
Only to be installed outdoors with UV and humidity protection
For fixed and occasional flexing installations
