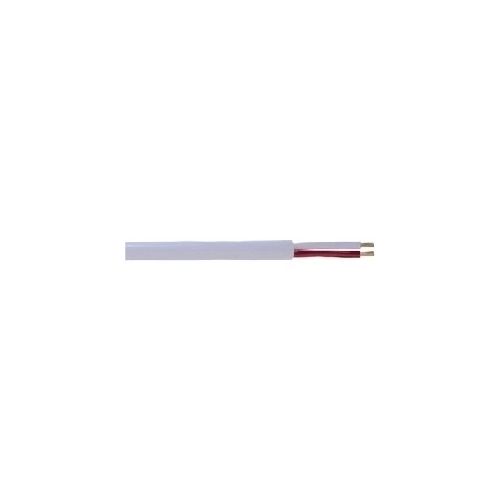

0153015 | KP11L-SIL-S PTRH/PT RCB,SCB 2X1,5 DIN | Paired Cables
Armoured Paired Extension and Compensating Cable, Single Paired Version, Thermocouple: PtRh/Pt, Number of Cores & Diameter: 2 x 1.5mm²
| Complete Electronics Part No. | 0153015 |
|---|---|
| Manufacturers Part No. | 0153015 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 1.5mm² |
| Special Application Series: | Single Paired Temperature Measure |
| Cable Jacket: | Armoured |
| Cable Length: | 50 Metres |
Description
Conductor design: 48 x 0.20 mm
Positive conductor: Cu (Copper), Red
Negative conductor: CuNi (cupronickel), White
Core insulation: Silicone Compound (SIR)
Inner sheath colour: White
Core layering: Twisted pair
Outer sheath: Glass fibre (GL) braiding with interweaved, white identification thread
Armouring type: Galvanised steel wire braiding
Core colour code: DIN 43710
No protective conductor
Temperature range, Fixed Install: -50°C to 200°C
Temperature, occasionally flexing: -25°C to 200°C
Oil-resistant - No
Chemical resistant - No
UV-resistant - No
Halogen Free - Yes
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 100 metres
Lapp Part Number: 0153015
Glass fibre / silicone insulated cable which transmits the thermoelectric voltage of PtRh/Pt thermocouples
RCB/SCB alloying, accuracy class 2 according DIN 43722
Only to be installed outdoors with UV and humidity protection
For fixed and occasional flexing installations
Compensating cables, paired - Glass Fibre/Silicone Insulation
Paired insulated cables - armoured
Single Paired Version
Thermocouple: PtRh/Pt
Product Make Up: DIN RCB, SCB
Cable Design: SIL-GL-S
Number of Cores & Diameter: 2 x 1.5mm²
Cable Outer Diameter: 6.7mm
For use in temperature measurement
Conductor design: 48 x 0.20 mm
Positive conductor: Cu (Copper), Red
Negative conductor: CuNi (cupronickel), White
Core insulation: Silicone Compound (SIR)
Inner sheath colour: White
Core layering: Twisted pair
Outer sheath: Glass fibre (GL) braiding with interweaved, white identification thread
Armouring type: Galvanised steel wire braiding
Core colour code: DIN 43710
No protective conductor
Temperature range, Fixed Install: -50°C to 200°C
Temperature, occasionally flexing: -25°C to 200°C
Oil-resistant - No
Chemical resistant - No
UV-resistant - No
Halogen Free - Yes
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 100 metres
Lapp Part Number: 0153015
Glass fibre / silicone insulated cable which transmits the thermoelectric voltage of PtRh/Pt thermocouples
RCB/SCB alloying, accuracy class 2 according DIN 43722
Only to be installed outdoors with UV and humidity protection
For fixed and occasional flexing installations
