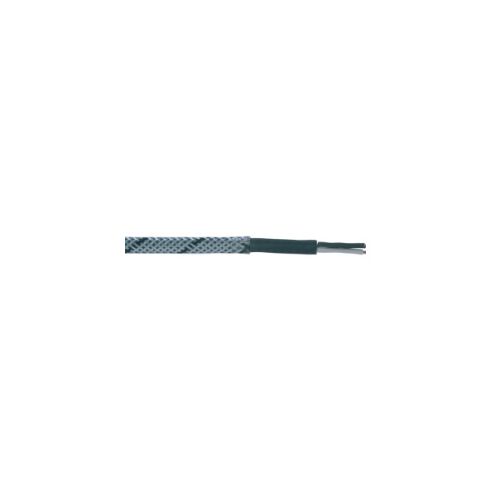

0153023 | KP15L-SIL-S PTRH/PT RCB,SCB 2X1,5 DIN | Paired Cables
Paired Extension and Compensating Cable, Single Paired Version, Thermocouple: PtRh/Pt, Number of Cores & Diameter: 2 x 1.5mm²
| Complete Electronics Part No. | 0153023 |
|---|---|
| Manufacturers Part No. | 0153023 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 1.5mm² |
| Special Application Series: | Single Paired Temperature Measure |
| Cable Jacket: | Armoured |
| Cable Length: | 50 Metres |
Description
Core layering: Cores twisted together
Armouring type: Galvanized steel wire braiding with interweaved white identification thread
Core colour code: DIN 43710
No protective conductor
Temperature range, Fixed Install: -50°C to 200°C
Temperature, occasionally flexing: -25°C to 200°C
Oil-resistant - No
Chemical resistant - Yes
UV-resistant - No
Halogen Free - Yes
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 50 metres
Lapp Part Number: 0153023
Silicone insulated cable which transmits the thermoelectric voltage of PtRh/Pt thermocouples
RCB/SCB alloying, accuracy class 2 acc. to DIN 43722
Compensating cables, paired - Silicone Insulation
Paired insulated cables - armoured
Single Paired Version
Thermocouple: PtRh/Pt
Product Make Up: DIN RCB, SCB
Cable Design: SIL-SIL-S round
Number of Cores & Diameter: 2 x 1.5mm²
Cable Outer Diameter: 7.8mm
For use in temperature measurement
Conductor design: 48 x 0.20 mm
Positive conductor: Cu (Copper), Red
Negative conductor: CuNi (cupronickel), White
Core insulation: Silicone compound
Outer sheath colour: White
Positive conductor: Cu (Copper), Red
Negative conductor: CuNi (cupronickel), White
Core insulation: Silicone compound
Outer sheath colour: White
Core layering: Cores twisted together
Armouring type: Galvanized steel wire braiding with interweaved white identification thread
Core colour code: DIN 43710
No protective conductor
Temperature range, Fixed Install: -50°C to 200°C
Temperature, occasionally flexing: -25°C to 200°C
Oil-resistant - No
Chemical resistant - Yes
UV-resistant - No
Halogen Free - Yes
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 50 metres
Lapp Part Number: 0153023
Silicone insulated cable which transmits the thermoelectric voltage of PtRh/Pt thermocouples
RCB/SCB alloying, accuracy class 2 acc. to DIN 43722
Only to be installed outdoors with UV and humidity protection
The steel wire armouring serves as mechanical protection.
For fixed and occasional flexing installations
The steel wire armouring serves as mechanical protection.
For fixed and occasional flexing installations
