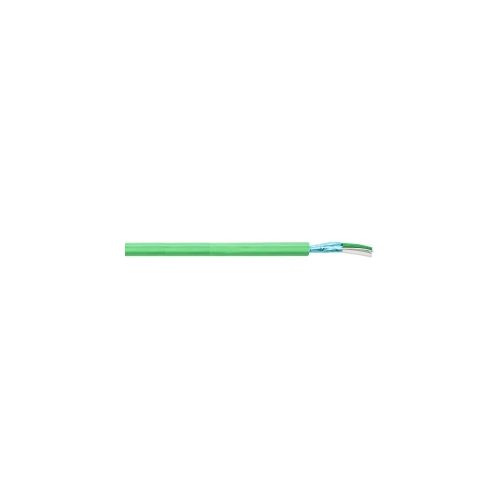

0154013 | KXN20L NICR/NI KX 2X1,5 DIN | Paired Cables
PVC Extension and Compensating Cable, Single Paired, Thermocouple: NiCr/Ni, Make Up: DIN KX, Cable Design: PVC-ST-PVC, No. of Cores & Diameter: 2 x 1.5mm²
| Complete Electronics Part No. | 0154013 |
|---|---|
| Manufacturers Part No. | 0154013 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 1.5mm² |
| Special Application Series: | Single Paired Temperature Measure |
| Shielding: | Shielded / Screened |
| Cable Length: | 100 Metres |
Description
Core layering: Cores twisted together
Screening: Aluminium cladded plastic foil with tinned copper drain wire (7x0.30 mm)
Core colour code: DIN 43710
No protective conductor
Temperature range, Fixed Install: -40°C to 80°C
Temperature, occasionally flexing: -5°C to 80°C
Oil-resistant - No
Chemical resistant - No
UV-resistant - No
Halogen Free - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - Yes acc. to VDMA 24364-B2-L
Cable Length: 100 metres
Lapp Part Number: 0154013
PVC insulated cable which transmits the thermoelectric voltage of NiCr/Ni thermocouples
KX alloying, accuracy class 2 according DIN 43722
Polyvinylchloride (PVC) compensating cables
Single Paired insulated cables - Screened
Single Paired Version
Thermocouple: NiCr/Ni
Product Make Up: DIN KX
Cable Design: PVC-ST-PVC
Number of Cores & Diameter: 2 x 1.5mm²
Cable Outer Diameter: 7.6mm
For use in temperature measurement
Conductor design: 48 x 0.20 mm
Positive conductor: NiCr (nickelchrome), Red
Negative conductor: Ni (nickel), Green
Positive conductor: NiCr (nickelchrome), Red
Negative conductor: Ni (nickel), Green
Core insulation: PVC compound
Outer Sheath: PVC Compound
Outer sheath colour: Green
Outer Sheath: PVC Compound
Outer sheath colour: Green
Core layering: Cores twisted together
Screening: Aluminium cladded plastic foil with tinned copper drain wire (7x0.30 mm)
Core colour code: DIN 43710
No protective conductor
Temperature range, Fixed Install: -40°C to 80°C
Temperature, occasionally flexing: -5°C to 80°C
Oil-resistant - No
Chemical resistant - No
UV-resistant - No
Halogen Free - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - Yes acc. to VDMA 24364-B2-L
Cable Length: 100 metres
Lapp Part Number: 0154013
PVC insulated cable which transmits the thermoelectric voltage of NiCr/Ni thermocouples
KX alloying, accuracy class 2 according DIN 43722
Only to be installed outdoors with UV and humidity protection
The overlapping foil wrapping screens the cores against electromagnetic interference
For fixed and occasional flexing installations
The overlapping foil wrapping screens the cores against electromagnetic interference
For fixed and occasional flexing installations
