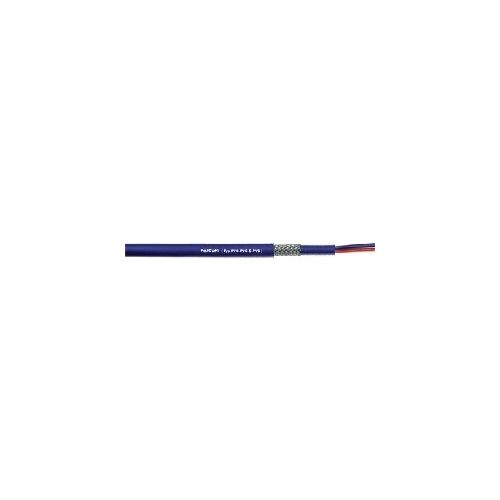

0155503 | KEL-SY FE/CUNI LX 8X1,5 DIN | Multi Paired Cables
Multi Paired Extension and Compensating Cable, Type SY with steel wire braiding, Thermocouple: Fe/CuNi, Number of cores and diameter: 8 x 1.5mm²
| Complete Electronics Part No. | 0155503 |
|---|---|
| Manufacturers Part No. | 0155503 |
| Number of Conductors: | 8 |
| Conductor Cross Section: | 1.5mm² |
| Special Application Series: | Multi Paired Temperature Measure |
| Shielding: | Steel Wire Braid |
| Cable Length: | 50 Metres |
Description
Outer sheath colour: Blue
Inner sheath colour: Blue
No protective conductor
Oil-resistant - No
Chemical resistant - No
UV-resistant - Yes
Halogen Free - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - Yes acc. to VDMA 24364-B2-L
Extension- and compensating cables, multi-paired
Twisted paired PVC insulated cables - armoured
Type SY with steel wire braiding
Thermocouple: Fe/CuNi
Product Make Up: DIN-LX
Cable Design: PVC-PVC-S-PVC
Number of cores and diameter: 8 x 1.5mm²
Cable Outer Diameter: 13.8mm
Conductor design: 48 x 0.20 mm
Positive conductor: Fe (iron), Red
Negative conductor: CuNi (cupronickel), Blue
Stranding type: Twisted-pair
Core insulation base material: Polyvinylchloride (PVC)
Armoured: Galvanised steel wire braiding
Negative conductor: CuNi (cupronickel), Blue
Stranding type: Twisted-pair
Core insulation base material: Polyvinylchloride (PVC)
Armoured: Galvanised steel wire braiding
Outer sheath colour: Blue
Inner sheath colour: Blue
No protective conductor
Temperature range, Fixed Install: -40°C to 80°C
Temperature, occasionally moved: -5°C to 80°C
Temperature, occasionally moved: -5°C to 80°C
Oil-resistant - No
Chemical resistant - No
UV-resistant - Yes
Halogen Free - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - Yes acc. to VDMA 24364-B2-L
Multi-cored, PVC insulated cables with steel wire armouring
To transmit the thermoelectric voltage of NiCr/Ni thermocouples
Cables with a black sheath are suitable for permanent outdoor use
For flexible and fixed installation in dry and damp rooms with medium mechanical load.
To transmit the thermoelectric voltage of NiCr/Ni thermocouples
Cables with a black sheath are suitable for permanent outdoor use
For flexible and fixed installation in dry and damp rooms with medium mechanical load.
Cable Length: 50M
Lapp Part Number: 0155503
