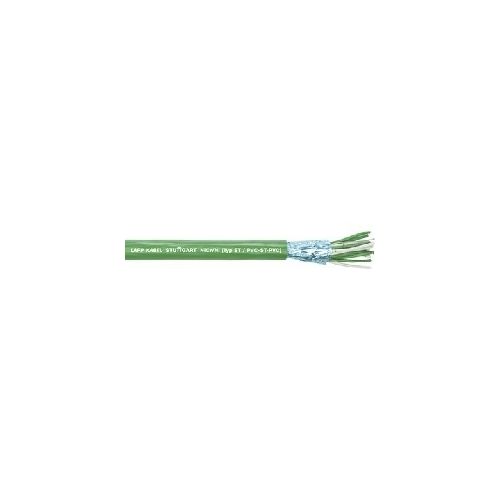

0158500 | KEL-ST FE/CUNI LX 2X2X1,5 DIN | Multi Paired Cables
Multi Paired Extension and Compensating Cable, Type ST with overall screening, Thermocouple: Fe/CuNi, Number of cores and diameter: 2 x 2 x 1.5mm²
| Complete Electronics Part No. | 0158500 |
|---|---|
| Manufacturers Part No. | 0158500 |
| Number of Conductors: | 4 |
| Conductor Cross Section: | 1.5mm² |
| Special Application Series: | Multi Paired Temperature Measure |
| Shielding: | Shielded / Screened |
| Cable Length: | 50 Metres |
Description
Positive conductor: Red
Positive conductor: Fe (iron)
Negative conductor: Blue
Negative conductor: CuNi (cupronickel)
Sheath colour: Blue
No protective conductor
Temperature range, Fixed Install: -40°C to 80°C
Temperature, occasionally moved: -5°C to 80°C
Oil-resistant - No
Chemical resistant - No
PWIS-free - Yes acc. to VDMA 24364-B2-L
UV-resistant - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
Halogen Free - No
Extension- and compensating cables, multi-paired
Twisted paired PVC insulated cables - screened
Type ST with static overall screening
Thermocouple: Fe/CuNi
Product Make Up: DIN-LX
Cable Design: PVC-ST-PVC
Number of cores and diameter: 2 x 2 x 1.5mm²
Cable Outer Diameter: 11.4mm
Conductor design: 48 x 0.20 mm
Stranding type: Twisted-pair
Core insulation base material: Polyvinylchloride (PVC)
Shielded: Aluminium-laminated plastic foil with tinned copper drain wire
Stranding type: Twisted-pair
Core insulation base material: Polyvinylchloride (PVC)
Shielded: Aluminium-laminated plastic foil with tinned copper drain wire
Positive conductor: Red
Positive conductor: Fe (iron)
Negative conductor: Blue
Negative conductor: CuNi (cupronickel)
Sheath colour: Blue
No protective conductor
Temperature range, Fixed Install: -40°C to 80°C
Temperature, occasionally moved: -5°C to 80°C
Oil-resistant - No
Chemical resistant - No
PWIS-free - Yes acc. to VDMA 24364-B2-L
UV-resistant - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
Halogen Free - No
To transmit the thermoelectric voltage of NiCr/Ni thermocouples
May only be installed outdoors with UV protection
For flexible and fixed installation in dry and damp rooms with medium mechanical load.
The overlapping foil wrapping screens the cores against electromagnetical interference
May only be installed outdoors with UV protection
For flexible and fixed installation in dry and damp rooms with medium mechanical load.
The overlapping foil wrapping screens the cores against electromagnetical interference
Cable Length: 50M
Lapp Part Number: 0158500
