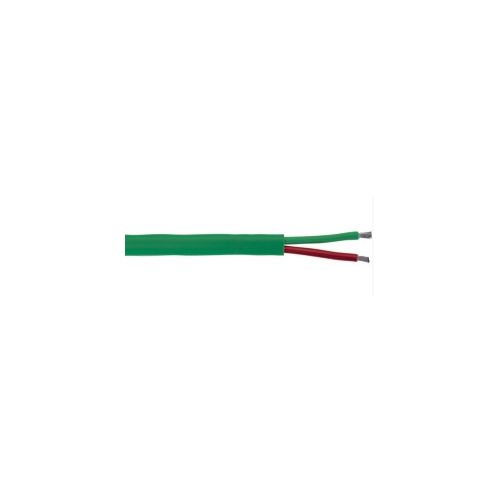

0161035 | KE92L FE/CUNI JX 2X0,75 IEC | Paired Cables
PVC Paired Extension and Compensating Cable, Single Paired Version, Thermocouple: Fe/CuNi, Number of Cores & Diameter: 2 x 0.75mm²
| Complete Electronics Part No. | 0161035 |
|---|---|
| Manufacturers Part No. | 0161035 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 0.75mm² |
| Special Application Series: | Single Paired Temperature Measure |
| Cable Length: | 100 Metres |
Description
Core layering: Cores twisted together
Core colour code: IEC 60584-3
No protective conductor
Temperature range, Fixed Install: -40°C to 80°C
Temperature, occasionally flexing: -5°C to 80°C
Oil-resistant - No
Chemical resistant - No
UV-resistant - Yes, acc. to EN 50525-1 (cables with a black sheath are suitable for permanent outdoor
Halogen Free - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - Yes, acc. VDMA 24364-B2-L
Cable Length: 100 metres
Lapp Part Number: 0161035
PVC insulated cable which transmits the thermoelectric voltage of Fe/CuNi thermocouples
JX alloying, accuracy class 2 according IEC 60584
PVC Extension and compensating cables
Single Paired insulated cables - not armoured
Single Paired Version
Thermocouple: Fe/CuNi
Product Make Up: IEC JX
Cable Design: PVC-PVC
Number of Cores & Diameter: 2 x 0.75mm²
Cable Outer Diameter: 6.0mm
For use in temperature measurement
Conductor design: 24 x 0.20 mm
Positive conductor: Fe (iron), Black
Negative conductor: CuNi (cupronickel), White
Core insulation: PVC compound
Outer Sheath: PVC Compound
Outer sheath colour: Black
Positive conductor: Fe (iron), Black
Negative conductor: CuNi (cupronickel), White
Core insulation: PVC compound
Outer Sheath: PVC Compound
Outer sheath colour: Black
Core layering: Cores twisted together
Core colour code: IEC 60584-3
No protective conductor
Temperature range, Fixed Install: -40°C to 80°C
Temperature, occasionally flexing: -5°C to 80°C
Oil-resistant - No
Chemical resistant - No
UV-resistant - Yes, acc. to EN 50525-1 (cables with a black sheath are suitable for permanent outdoor
Halogen Free - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - Yes, acc. VDMA 24364-B2-L
Cable Length: 100 metres
Lapp Part Number: 0161035
PVC insulated cable which transmits the thermoelectric voltage of Fe/CuNi thermocouples
JX alloying, accuracy class 2 according IEC 60584
Only to be installed outdoors with UV and humidity protection
For fixed and occasional flexing installations
For fixed and occasional flexing installations
