0162003 | KN1L-SIL NICR/NI KCA 2X1,5 DIN | Paired Cables
Extension and Compensating Cable, Single Paired, Thermocouple: NiCr/Ni, Product Make Up: IEC KCA, Cable Design: SIL, Number of Cores & Diameter: 2 x 1.5mm²
| Complete Electronics Part No. | 0162003 |
|---|---|
| Manufacturers Part No. | 0162003 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 1.5mm² |
| Special Application Series: | Single Paired Temperature Measure |
| Cable Length: | 100 Metres |
Description
Temperature range, Fixed Install: -50°C to 200°C
Temperature, occasionally flexing: -25°C to 200°C
Oil-resistant - No
Chemical resistant - Yes
UV-resistant - No
Halogen Free - Yes
Flame retardant - No
PWIS-free - No
Cable Length: 100 metres
Lapp Part Number:
Silicone insulated cable which transmits the thermoelectric voltage of NiCr/Ni thermocouples
KCA alloys, accuracy class 2 according IEC 60584
Only to be installed outdoors with UV and humidity protection
For fixed and occasional flexing installations
Extension- and compensating cables
Paired insulated cables - not armoured
Single Paired Version
Thermocouple: NiCr/Ni
Product Make Up: IEC KCA
Cable Design: SIL
Number of Cores & Diameter: 2 x 1.5mm²
Cable Outer Diameter: 5.4mm
For use in temperature measurement
Conductor design: 48 x 0.20 mm

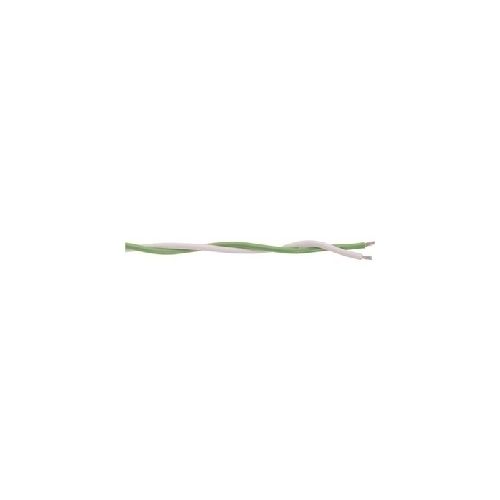

Positive conductor: Fe (iron), Green
Negative conductor: CuNi (cupronickel), White
Core insulation: Silicone compound
No outer sheath
Positive conductor: Fe (iron), Green
Negative conductor: CuNi (cupronickel), White
Core insulation: Silicone compound
No outer sheath
Core layering: Cores twisted together
Core colour code:
No protective conductor
Core colour code:
No protective conductor
Temperature range, Fixed Install: -50°C to 200°C
Temperature, occasionally flexing: -25°C to 200°C
Oil-resistant - No
Chemical resistant - Yes
UV-resistant - No
Halogen Free - Yes
Flame retardant - No
PWIS-free - No
Cable Length: 100 metres
Lapp Part Number:
Silicone insulated cable which transmits the thermoelectric voltage of NiCr/Ni thermocouples
KCA alloys, accuracy class 2 according IEC 60584
Only to be installed outdoors with UV and humidity protection
For fixed and occasional flexing installations
