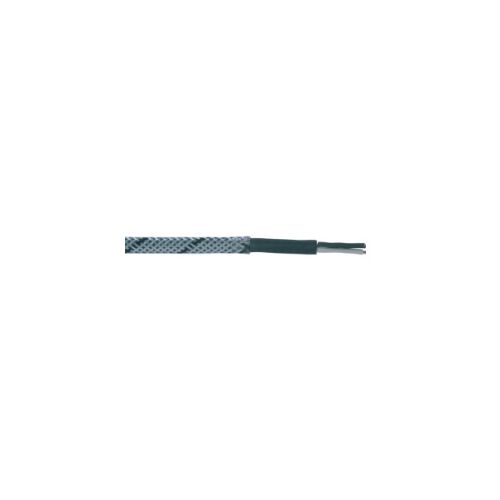

0162007 | KN4L-SIL-S NICR/NI KCA 2X1,5 IEC OVAL | Paired Cables
Extension and Compensating Cable, Single Paired, Thermocouple: NiCr/Ni, Make Up: IEC KCA, Cable Design: SIL-SIL-S Oval, No. of Cores & Diam.: 2 x 1.5mm²
| Complete Electronics Part No. | 0162007 |
|---|---|
| Manufacturers Part No. | 0162007 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 1.5mm² |
| Special Application Series: | Single Paired Temperature Measure |
| Cable Jacket: | Armoured |
| Cable Length: | 50 Metres |
Description
Core layering: Cores parallel next to each other
Armouring type: Galvanized steel wire braiding with interweaved green identification thread
Core colour code: IEC 60584-3
No protective conductor
Temperature range, Fixed Install: -50°C to 200°C
Temperature, occasionally flexing: -25°C to 200°C
Oil-resistant - No
Chemical resistant - Yes
UV-resistant - No
Halogen Free - Yes
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 50 metres
Lapp Part Number: 0162007
Silicone insulated cable which transmits the thermoelectric voltage of NiCr/Ni thermocouples
KCA alloys, accuracy class 2 according IEC 60584
Only to be installed outdoors with UV and humidity protection
For fixed and occasional flexing installations
Compensating cables, paired - Silicone Insulation
Paired insulated cables - armoured
Single Paired Version
Thermocouple: NiCr/Ni
Product Make Up: IEC KCA
Cable Design: SIL-SIL-S Oval
Number of Cores & Diameter: 2 x 1.5mm²
Outer Dimensions W x H: 8.0 x 5.2mm
For use in temperature measurement
Conductor design: 48 x 0.20 mm
Positive conductor: Fe (iron), Green
Negative conductor: CuNi (cupronickel), White
Core insulation: Silicone compound (SIR)
Outer sheath colour: Green
Positive conductor: Fe (iron), Green
Negative conductor: CuNi (cupronickel), White
Core insulation: Silicone compound (SIR)
Outer sheath colour: Green
Core layering: Cores parallel next to each other
Armouring type: Galvanized steel wire braiding with interweaved green identification thread
Core colour code: IEC 60584-3
No protective conductor
Temperature range, Fixed Install: -50°C to 200°C
Temperature, occasionally flexing: -25°C to 200°C
Oil-resistant - No
Chemical resistant - Yes
UV-resistant - No
Halogen Free - Yes
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 50 metres
Lapp Part Number: 0162007
Silicone insulated cable which transmits the thermoelectric voltage of NiCr/Ni thermocouples
KCA alloys, accuracy class 2 according IEC 60584
Only to be installed outdoors with UV and humidity protection
For fixed and occasional flexing installations
