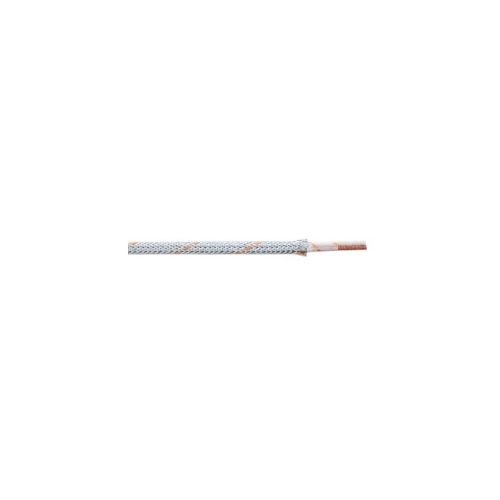

0163006 | KP4L-S PTRH/PT RCB,SCB 2X1,5 IEC OVAL | Paired Cables
Paired Extension and Compensating Cable, Single Paired Version, Thermocouple: PtRh/Pt,, Cable Design: GL-GL-S Oval, Number of Cores & Diameter: 2 x 1.5mm²
| Complete Electronics Part No. | 0163006 |
|---|---|
| Manufacturers Part No. | 0163006 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 1.5mm² |
| Special Application Series: | Single Paired Temperature Measure |
| Cable Length: | 100 Metres |
Description
Positive conductor: Cu Copper, Orange marked
Negative conductor: CuNi (cupronickel), White marked
Core layering: Cores parallel next to each other
Outer sheath: Glass fibre (GL) braiding with interweaved, orange identification thread
Armouring: Galvanized steel wire braiding with interweaved, orange identification thread
Oil-resistant - No
Chemical resistant - No
UV-resistant - No
Halogen Free - Yes
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 100 metres
Lapp Part Number: 0163006
Glass fibre insulated cable which transmits the thermoelectric voltage of PtRh/Pt thermocouples
RCB/SCB alloying, accuracy class 2 according IEC 60584
The steel wire armouring serves as mechanical protection.
Only to be installed outdoors with UV and humidity protection
For fixed and occasional flexing installations
Compensating cables, paired - Glass Fibre Insulation
Paired insulated cables - armoured
Single Paired Version
Thermocouple: PtRh/Pt
Product Make Up: IEC RCB, SCB
Cable Design: GL-GL-S Oval
Number of Cores & Diameter: 2 x 1.5mm²
Outer Dimensions W x H: 5.9 x 3.7mm
For use in temperature measurement
Conductor design: 48 x 0.20 mm
Number of cores: 2
Shape of cable: Oval
Number of cores: 2
Shape of cable: Oval
Core layering: Cores parallel next to each other
Positive conductor: Cu Copper, Orange marked
Negative conductor: CuNi (cupronickel), White marked
Core layering: Cores parallel next to each other
Outer sheath: Glass fibre (GL) braiding with interweaved, orange identification thread
Armouring: Galvanized steel wire braiding with interweaved, orange identification thread
Inner sheath colour: Orange
Core colour code: IEC 60584-3
No protective conductor
Temperature range, Fixed Install: -50°C to 200°C
Temperature, occasionally flexing: -25°C to 200°C
Core colour code: IEC 60584-3
No protective conductor
Temperature range, Fixed Install: -50°C to 200°C
Temperature, occasionally flexing: -25°C to 200°C
Oil-resistant - No
Chemical resistant - No
UV-resistant - No
Halogen Free - Yes
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 100 metres
Lapp Part Number: 0163006
Glass fibre insulated cable which transmits the thermoelectric voltage of PtRh/Pt thermocouples
RCB/SCB alloying, accuracy class 2 according IEC 60584
The steel wire armouring serves as mechanical protection.
Only to be installed outdoors with UV and humidity protection
For fixed and occasional flexing installations
