0163023 | KP15L-SIL-S PTRH/PT RCB,SCB 2X1,5 IEC | Paired Cable

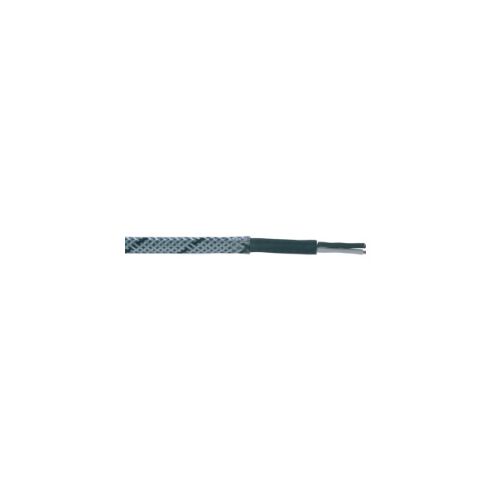

Extension and Compensating Cable, Single Paired, Thermocouple: PtRh/Pt, Make Up: IEC RCB, SCB, Cable Design: SIL-SIL-S round, No. of Cores & Diameter: 2 x 1.5mm²
| Complete Electronics Part No. | 0163023 |
|---|---|
| Manufacturers Part No. | 0163023 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 1.5mm² |
| Special Application Series: | Single Paired Temperature Measure |
| Cable Jacket: | Armoured |
| Cable Length: | 50 Metres |
Description
Core layering: Cores twisted together
Armouring type: Galvanized steel wire braiding with interweaved orange identification thread
Core colour code: IEC 60584-3
No protective conductor
Temperature range, Fixed Install: -50°C to 200°C
Temperature, occasionally flexing: -25°C to 200°C
Oil-resistant - No
Chemical resistant - Yes
UV-resistant - No
Halogen Free - Yes
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 50 metres
Lapp Part Number: 0163023
Silicone insulated cable which transmits the thermoelectric voltage of PtRh/Pt thermocouples
KCA alloys, accuracy class 2 according IEC 60584
Only to be installed outdoors with UV and humidity protection
The steel wire armouring serves as mechanical protection.
For fixed and occasional flexing installations
Compensating cables, paired - Silicone Insulation
Paired insulated cables - armoured
Single Paired Version
Thermocouple: PtRh/Pt
Product Make Up: IEC RCB, SCB
Cable Design: SIL-SIL-S round
Number of Cores & Diameter: 2 x 1.5mm²
Cable Outer Diameter: 7.8mm
For use in temperature measurement
Conductor design: 48 x 0.20 mm
Positive conductor: Fe (iron), Orange
Negative conductor: CuNi (cupronickel), White
Core insulation: Silicone compound
Outer sheath colour: Orange
Positive conductor: Fe (iron), Orange
Negative conductor: CuNi (cupronickel), White
Core insulation: Silicone compound
Outer sheath colour: Orange
Core layering: Cores twisted together
Armouring type: Galvanized steel wire braiding with interweaved orange identification thread
Core colour code: IEC 60584-3
No protective conductor
Temperature range, Fixed Install: -50°C to 200°C
Temperature, occasionally flexing: -25°C to 200°C
Oil-resistant - No
Chemical resistant - Yes
UV-resistant - No
Halogen Free - Yes
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - No
Cable Length: 50 metres
Lapp Part Number: 0163023
Silicone insulated cable which transmits the thermoelectric voltage of PtRh/Pt thermocouples
KCA alloys, accuracy class 2 according IEC 60584
Only to be installed outdoors with UV and humidity protection
The steel wire armouring serves as mechanical protection.
For fixed and occasional flexing installations
