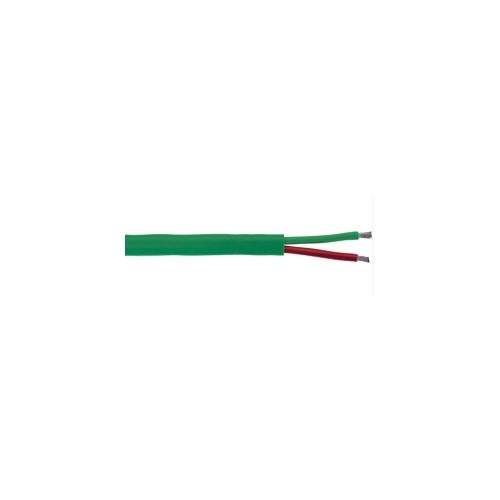

0164010 | KXN9L NICR/NI KX 2X1,5 IEC ROUND | Paired Cables
PVC Paired Extension and Compensating Cable, Single Paired Version, Thermocouple: NiCr/Ni, Number of Cores & Diameter: 2 x 1.5mm²
| Complete Electronics Part No. | 0164010 |
|---|---|
| Manufacturers Part No. | 0164010 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 1.5mm² |
| Special Application Series: | Single Paired Temperature Measure |
| Cable Length: | 100 Metres |
Description
Core layering: Cores twisted together
Core colour code: IEC 60584-3
No protective conductor
Temperature range, Fixed Install: -40°C to 80°C
Temperature, occasionally flexing: -5°C to 80°C
Oil-resistant - No
Chemical resistant - No
UV-resistant - No
Halogen Free - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - Yes acc. to VDMA 24364-B2-L
Cable Length: 100 metres
Lapp Part Number: 0164010
PVC insulated cable which transmits the thermoelectric voltage of NiCr/Ni thermocouples
KX alloying, accuracy class 2 according IEC 60584
Only to be installed outdoors with UV and humidity protection
For fixed and occasional flexing installations
Polyvinylchloride (PVC) compensating cables
Single Paired insulated cables
Single Paired Version
Thermocouple: NiCr/Ni
Product Make Up: IEC KX
Cable Design: PVC-PVC round
Number of Cores & Diameter: 2 x 1.5mm²
Cable Outer Diameter: 7.1mm
For use in temperature measurement
Conductor design: 48 x 0.20 mm
Positive conductor: NiCr (nickelchrome), Green
Negative conductor: Ni (nickel), White
Core insulation: PVC compound
Outer Sheath: PVC Compound
Outer sheath colour: Green
Positive conductor: NiCr (nickelchrome), Green
Negative conductor: Ni (nickel), White
Core insulation: PVC compound
Outer Sheath: PVC Compound
Outer sheath colour: Green
Core layering: Cores twisted together
Core colour code: IEC 60584-3
No protective conductor
Temperature range, Fixed Install: -40°C to 80°C
Temperature, occasionally flexing: -5°C to 80°C
Oil-resistant - No
Chemical resistant - No
UV-resistant - No
Halogen Free - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - Yes acc. to VDMA 24364-B2-L
Cable Length: 100 metres
Lapp Part Number: 0164010
PVC insulated cable which transmits the thermoelectric voltage of NiCr/Ni thermocouples
KX alloying, accuracy class 2 according IEC 60584
Only to be installed outdoors with UV and humidity protection
For fixed and occasional flexing installations
