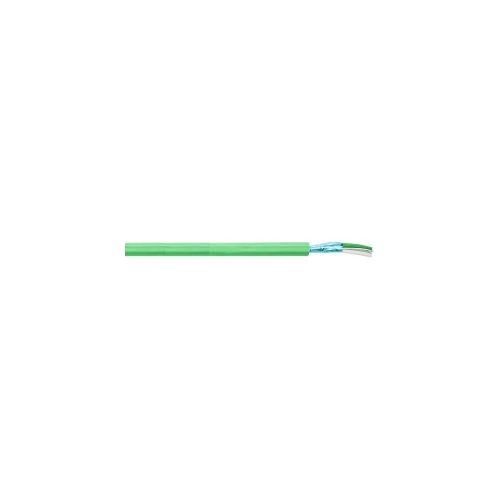

0164014 | KP20L PTRH/PT RCB,SCB 2X1,5 IEC | Paired Cables
PVC Extension and Compensating Cable, Single Paired, Thermocouple: PtRh/Pt, Make Up: IEC RCB, SCB, Cable Design: PVC-ST-PVC, No. of Cores & Diam.: 2 x 1.5mm²
| Complete Electronics Part No. | 0164014 |
|---|---|
| Manufacturers Part No. | 0164014 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 1.5mm² |
| Special Application Series: | Single Paired Temperature Measure |
| Shielding: | Shielded / Screened |
| Cable Length: | 100 Metres |
Description
Core layering: Cores twisted together
Screening: Aluminium cladded plastic foil with tinned copper drain wire (7x0.30 mm)
Temperature range, Fixed Install: -40°C to 80°C
Temperature, occasionally flexing: -5°C to 80°C
Oil-resistant - No
Chemical resistant - No
UV-resistant - No
Halogen Free - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - Yes acc. to VDMA 24364-B2-L
Cable Length: 100 metres
Lapp Part Number: 0164014
PVC insulated cable which transmits the thermoelectric voltage of PtRh/Pt thermocouples
RCB/SCB alloying, accuracy class 2 according IEC 60584
Polyvinylchloride (PVC) compensating cables
Single Paired insulated cables - Screened
Single Paired Version
Thermocouple: PtRh/Pt
Product Make Up: IEC RCB, SCB
Cable Design: PVC-ST-PVC
Number of Cores & Diameter: 2 x 1.5mm²
Cable Outer Diameter: 7.6mm
For use in temperature measurement
Conductor design: 48 x 0.20 mm
Positive conductor: Cu (Copper), Orange
Negative conductor: CuNi (cupronickel), White
Core insulation: PVC compound
Outer Sheath: PVC Compound
Outer sheath colour: Orange
Positive conductor: Cu (Copper), Orange
Negative conductor: CuNi (cupronickel), White
Core insulation: PVC compound
Outer Sheath: PVC Compound
Outer sheath colour: Orange
Core layering: Cores twisted together
Screening: Aluminium cladded plastic foil with tinned copper drain wire (7x0.30 mm)
Core colour code: IEC 60584-3
No protective conductor
No protective conductor
Temperature range, Fixed Install: -40°C to 80°C
Temperature, occasionally flexing: -5°C to 80°C
Oil-resistant - No
Chemical resistant - No
UV-resistant - No
Halogen Free - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - Yes acc. to VDMA 24364-B2-L
Cable Length: 100 metres
Lapp Part Number: 0164014
PVC insulated cable which transmits the thermoelectric voltage of PtRh/Pt thermocouples
RCB/SCB alloying, accuracy class 2 according IEC 60584
Only to be installed outdoors with UV and humidity protection
The overlapping foil wrapping screens the cores against electromagnetic interference
For fixed and occasional flexing installations
The overlapping foil wrapping screens the cores against electromagnetic interference
For fixed and occasional flexing installations
