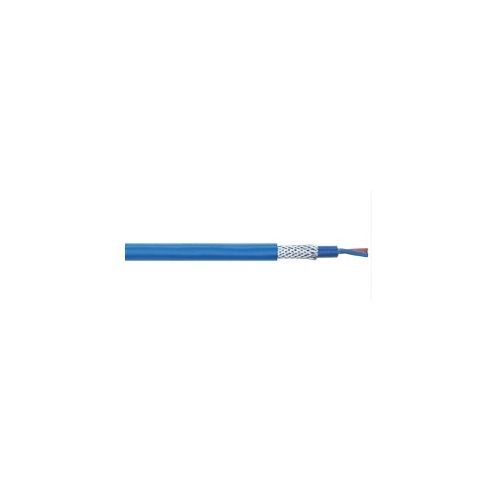

0167514 | KE9L-SY FE/CUNI JX 2X1,5 IEC | Paired Cables
Extension and Compensating Cable, Single Paired, Thermocouple: Fe/CuNi, Make Up: IEC JX, Cable Design: PVC-PVC-S-PVC, No. of Cores & Diam.: 2 x 1.5mm²
| Complete Electronics Part No. | 0167514 |
|---|---|
| Manufacturers Part No. | 0167514 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 1.5mm² |
| Special Application Series: | Single Paired Temperature Measure |
| Cable Jacket: | Armoured |
| Cable Length: | 50 Metres |
Description
Core layering: Cores twisted together
Armouring type: Galvanized steel wire braiding
Core colour code: IEC 60584-3
No protective conductor
Temperature range, Fixed Install: -40°C to 80°C
Temperature, occasionally flexing: -5°C to 80°C
Oil-resistant - No
Chemical resistant - No
UV-resistant - Yes
Halogen Free - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - Yes acc. VDMA 24364-B2-L
Cable Length: 50 metres
Lapp Part Number: 0167514
PVC insulated cable which transmits the thermoelectric voltage of Fe/CuNi thermocouples
JX alloying, accuracy class 2 according IEC 60584
Polyvinylchloride (PVC) compensating cables
Single Paired insulated cables - armoured
Single Paired Version
Thermocouple: Fe/CuNi
Product Make Up: IEC JX
Cable Design: PVC-PVC-S-PVC
Number of Cores & Diameter: 2 x 1.5mm²
Cable Outer Diameter: 10.3mm
For use in temperature measurement
Conductor design: 48 x 0.20 mm
Positive conductor: Fe (iron), Black
Negative conductor: CuNi (cupronickel), White
Core insulation: PVC compound
Outer Sheath: PVC Compound
Outer sheath colour: Black
Positive conductor: Fe (iron), Black
Negative conductor: CuNi (cupronickel), White
Core insulation: PVC compound
Outer Sheath: PVC Compound
Outer sheath colour: Black
Core layering: Cores twisted together
Armouring type: Galvanized steel wire braiding
Core colour code: IEC 60584-3
No protective conductor
Temperature range, Fixed Install: -40°C to 80°C
Temperature, occasionally flexing: -5°C to 80°C
Oil-resistant - No
Chemical resistant - No
UV-resistant - Yes
Halogen Free - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - Yes acc. VDMA 24364-B2-L
Cable Length: 50 metres
Lapp Part Number: 0167514
PVC insulated cable which transmits the thermoelectric voltage of Fe/CuNi thermocouples
JX alloying, accuracy class 2 according IEC 60584
The steel wire armouring serves as mechanical protection
For fixed and occasional flexing installations
For fixed and occasional flexing installations
