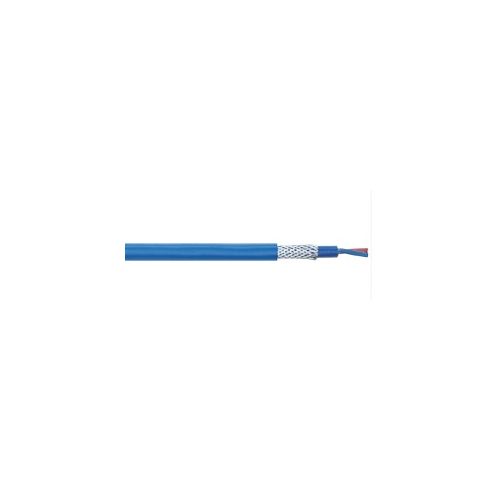

0167515 | KP9L-SY PTRH/PT RCB,SCB 2X1,5 IEC | Paired Cables
Paired Extension and Compensating Cable, Single Paired Version, Thermocouple: PtRh/Pt, Number of Cores & Diameter: 2 x 1.5mm²
| Complete Electronics Part No. | 0167515 |
|---|---|
| Manufacturers Part No. | 0167515 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 1.5mm² |
| Special Application Series: | Single Paired Temperature Measure |
| Cable Jacket: | Armoured |
| Cable Length: | 50 Metres |
Description
Temperature range, Fixed Install: -40°C to 80°C
Temperature, occasionally flexing: -5°C to 80°C
Oil-resistant - No
Chemical resistant - No
UV-resistant - No
Halogen Free - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - Yes acc. VDMA 24364-B2-L
Cable Length: 50 metres
Lapp Part Number: 0167515
PVC insulated cable which transmits the thermoelectric voltage of PtRh/Pt thermocouples
RCB/SCB alloying, accuracy class 2 according IEC 60584
Polyvinylchloride (PVC) compensating cables
Paired insulated cables - armoured
Single Paired Version
Thermocouple: PtRh/Pt
Product Make Up: IEC RCB, SCB
Cable Design: PVC-PVC-S-PVC
Number of Cores & Diameter: 2 x 1.5mm²
Cable Outer Diameter: 10.3mm
For use in temperature measurement
Conductor design: 48 x 0.20 mm
Positive conductor: Cu (Copper), Orange
Negative conductor: CuNi (cupronickel), White
Core insulation: PVC compound
Positive conductor: Cu (Copper), Orange
Negative conductor: CuNi (cupronickel), White
Core insulation: PVC compound
Outer Sheath: PVC Compound
Outer sheath colour: Orange
Outer sheath colour: Orange
Core layering: Cores twisted together
Armouring type: Galvanized steel wire braiding
Armouring type: Galvanized steel wire braiding
Core colour code: IEC 60584-3
No protective conductor
No protective conductor
Temperature range, Fixed Install: -40°C to 80°C
Temperature, occasionally flexing: -5°C to 80°C
Oil-resistant - No
Chemical resistant - No
UV-resistant - No
Halogen Free - No
Flame retardant - Yes acc. to IEC 60332-1 - 2
PWIS-free - Yes acc. VDMA 24364-B2-L
Cable Length: 50 metres
Lapp Part Number: 0167515
PVC insulated cable which transmits the thermoelectric voltage of PtRh/Pt thermocouples
RCB/SCB alloying, accuracy class 2 according IEC 60584
Only to be installed outdoors with UV and humidity protection
The steel wire armouring serves as mechanical protection
For fixed and occasional flexing installations
The steel wire armouring serves as mechanical protection
For fixed and occasional flexing installations
