090001000100 | ARDBOX 20 I/O Analog HF Modbus & Power Supply

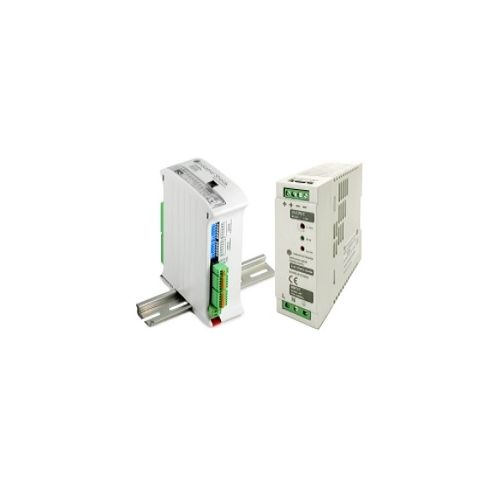

PLC Arduino ARDBOX 20 I/Os Analog HF Modbus & Power Supply (12Vdc,30W)
| Complete Electronics Part No. | 090001000100 |
|---|---|
| Manufacturers Part No. | 090001000100 |
Description
PLC Arduino ARDBOX 20 I/Os Starter Kit
Compact DIN rail power supply. Assembled on 35mm DIN Rail:
12Vdc
2.5A
30W
Power supplies provide parallel operation, overvoltage protection, and overcurrent protection. There is a LED inductor for power status, the power supply is certified according to UL.
Inputs (Arduino Leonardo included)
- 10 x Inputs:
- 10 x Digital (5-24Vdc).
- 6x of 10x, Analog (0-10Vdc) configurable by Software.
Outputs (Arduino Leonardo included)
- 10 Outputs:
- 10x Digital isolated (5 to 24Vdc)/ (6x) of 10x, PWM (5 to 24Vdc) outputs, configurable by Switch.
- 7x of 10x, Analog 0-10Vdc output. Configurable by Switch.
Communications
- 1x USB port
- 1x I2C port. (Interface with other Industrial Shields, sensors, I/Os modules)
- 1x HALF/FULL Duplex RS-485 port.Modbus connection available between devices), RS-232
Other Information
- DIN Rail mounting.
- Flash Memory: 32kB (4kB for bootloader)
- SRAM: 2,5kB
- EEPROM: 1kB
- Clock Speed: 16MHz
*Read the manual to set the signal type.
