0975 254 104/10 M | 47939 | Cordset

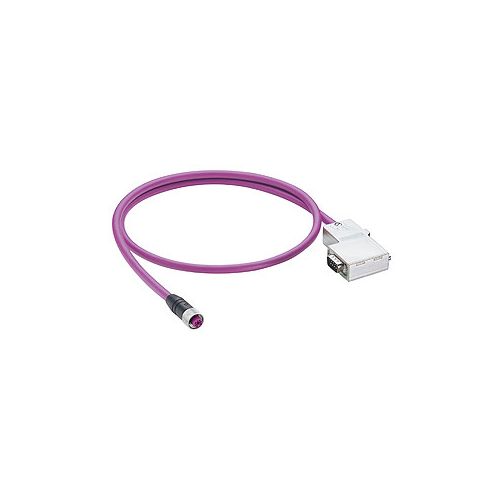

Profibus signal cable, molded double ended with M12 female connector, 5 poles, B coding and SUBD male connector, 9 poles, cable length 10 metres
| Complete Electronics Part No. | 47939 |
|---|---|
| Manufacturers Part No. | 47939 |
| Type: | Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M 12 Female - SUBD Male |
| Coded Option (Circular) | B |
| Cable Entry: | Straight - Right Angled |
| Number of poles | 5 |
| Protocol: | Profibus |
| Cable Length: | 10 Metres |
| Cable Jacket: | PUR |
Description
0975 254 104/10 M
Profibus signal cable
- Moulded/assembled on both sides with M12 female connector
- 5 poles
- To
- B coding and SUBD male connector
- 9 poles
- With switch-on terminating resistor
- 10 meter
- PUR jacket
- Halogen free
- Violet
