0975 254 130/5 M | 09752541305M | 934727007 | Cordset

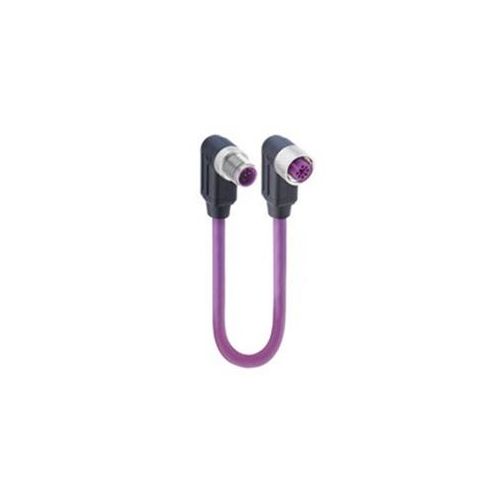

Cord set, double-ended, M12 Profibus signal cable, M12 male connector, right angled, B coded, and M12 female connector, right angled, B coded, 5 poles, PUR jacket, halogen-free, screened, violet, 5 metres
| Complete Electronics Part No. | 09752541305M |
|---|---|
| Manufacturers Part No. | 0975 254 130/5 M |
| Type: | Cordset (Shielded) |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Male - M12 Female |
| Coded Option (Circular) | B |
| Cable Entry: | Right Angled |
| Number of poles | 6 |
| Protocol: | Profibus |
| Rated Voltage: | 60V |
| Rated Current: | 4A |
| Cable Length: | 5 Metres |
| Cable Jacket: | PUR |
| IP Rating: | IP67 / 68 / 69K |
Description
0975 254 130/5 M
Cordset, double-ended
- M12 Profibus signal cable
- moulded with M12 male connector
- right angled
- B coded
- and M12 female connector
- right angled
- B coded
- with threaded joint
- 5 poles
- 360° shielding connected to knurled screw resp. knurled nut
- colour coding of the conductor acc. to Euro-standard
- PUR jacket
- halogen-free
- screened
- violet
- 5 metres.
