0975 254 134/10 M | 097525413410M | 5227 | Cordset

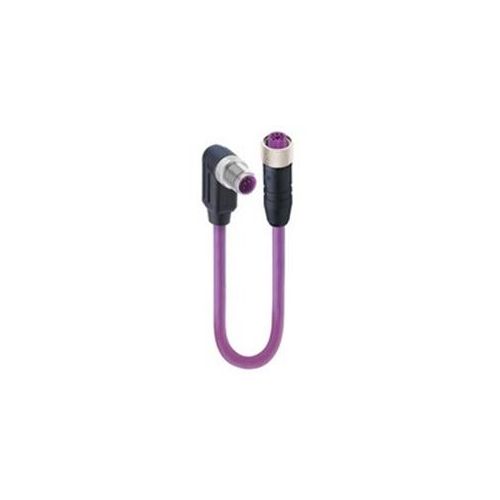

Cordset, double-ended, M12 Profibus signal cable, with M12 male connector, right angled version, B coded, and M12 female connector, straight version, B coded, 10 Metres
| Complete Electronics Part No. | 097525413410M |
|---|---|
| Manufacturers Part No. | 0975 254 134/10 M |
| Type: | Cordset (Shielded) |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Male - M12 Male |
| Coded Option (Circular) | B |
| Cable Entry: | Right Angled - Straight |
| Number of poles | 5 |
| Protocol: | Profibus |
| Rated Voltage: | 60V |
| Rated Current: | 4 A per cable / 4 A max. at 40°C |
| Cable Length: | 10 Metres |
| Cable Jacket: | PUR |
| IP Rating: | IP67 / 68 / 69K |
Description
0975 254 134/10 M
Cordset, double-ended,M12 Profibus signal cable
- moulded with M12 male connector,right angled
- B coded
- To
- M12 female connector
- straight version
- B coded
- with threaded joint
- 5 poles
- 360° shielding connected to knurled screw resp. knurled nut
- colour coding of the conductor acc. to Euro-standard
- Outer jacket PUR
- halogen-free
- screened
- Colour of jacket violet
- Cable length 10 metres
- Number of conductors 2
