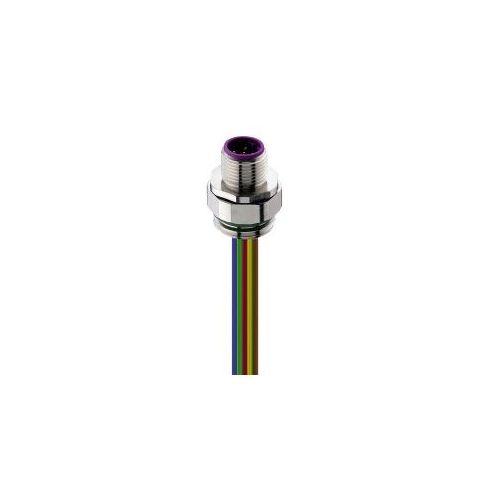

0976 PMC 151 | 18315 | Connector
Receptacle Connector, M12 male, 5 pole, cable length 0.5m
| Complete Electronics Part No. | 18315 |
|---|---|
| Manufacturers Part No. | 18315 |
| Type: | Recptacle Connector |
| Mounting: | Front Mounting |
| Coded Option (Circular) | B |
| Male/Female: | Male M12 |
| Cable Entry: | Straight |
| Number of poles | 5 |
| Rated Voltage: | 60V |
| Rated Current: | 4A at 40°C |
| IP Rating: | IP67 |
Description
0976 PMC 151
Receptacle Connector
- For front mounting
- Assembled stranded wire 0.5m
- Solder contacts potted with epoxy
- With adjustable nut
- 5 Poles
- B Coding
- Especially suited for Profibus
- M12 male connector
- Chassis side thread M16 x 1.5
